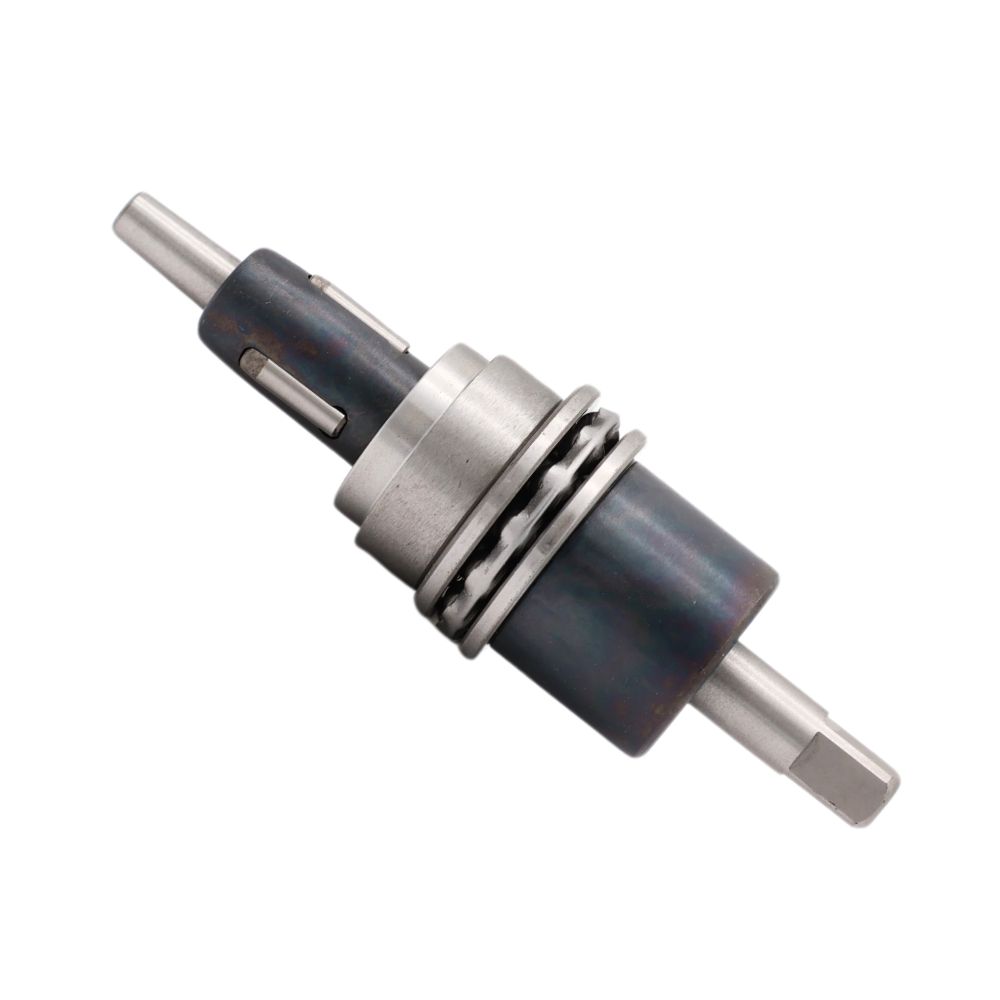

Tube expander for DIN pipes

Application:

Pipe expander for deep rolling of dairy union nuts on DIN pipes. The pipe expander expands DIN pipes into expander collar and expander nipples by turning the spindle of the pipe expander.

Construction:

Constructed with 5 rollers.

Download productsheet

Product number	Nominal dim. mm.	Expansion mm.	Net weight kg.	Base unit
0750010010	DN10	09,8 - 11,0	0,30	PCS
0750010015	DN15	15,5 - 17,6	0,30	PCS
0750010020	DN20	19,7 - 22,0	0,400	PCS
0750010025	DN25	25,0 - 28,0	0,70	PCS
0750010032	DN32	30,0 - 34,0	1,00	PCS
0750010040	DN40	36,0 - 39,8	1,50	PCS
0750010050	DN50	48,0 - 51,8	2,30	PCS
0750010065	DN65	64,8 - 70,0	4,20	PCS
0750010080	DN80	79,0 - 85,0	6,80	PCS
0750010100	DN100	99,0 - 105,6	10,60	PCS
