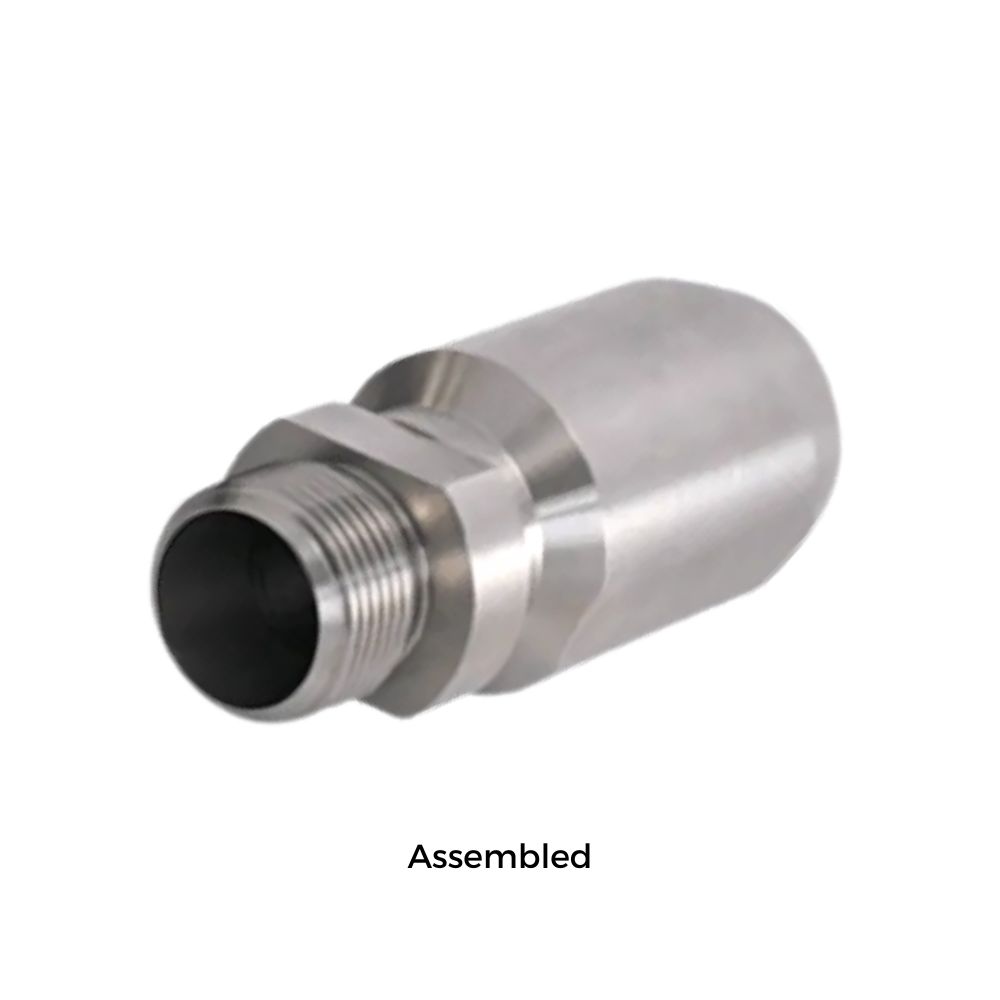

AFT reusable pressure fitting, BSP nipple

Application:

AFT pressure fitting with RG nipple for coupling hoses on, for example, integrated foam and washing systems. Can be maintained when the hoses become defective and need to be replaced.

Construction:

The pressure fitting consists of a connection piece and a sleeve that are screwed into each other, thereby creating a strong coupling of the hose.



Technical specifications

Quality:

Both connection piece and sleeve are made of stainless steel AISI 304.



Product number Nominal dim.
mm.
Connection
RG
Ø ID hose
mm.
Ø OD hose
mm.
Length L
mm.
Base unit
0469009080
10,0
3/8"
10,0
18,0
0
PCS
0469009081
10,0
3/8"
10,0
22,0
0
PCS
0469009100
12,0
1/2"
12,0
22,0
72,8
PCS
0469009102
12,0
1/2"
12,0
24,0
72,8
PCS
0469009103
12,0
1/2"
12,0
19,0
72,8
PCS
0469009105
12,0
1/2"
12,0
17,0
72,8
PCS
0469009107
12,0
1/2"
12,0
23,0
72,8
PCS
0469009130
19,0
3/4"
19,0
26,0
86,0
PCS
0469009131
19,0
3/4"
19,0
29,0
86,0
PCS
0469009133
19,0
1/2"
19,0
29,0
86,0
PCS
0469009134
19,0
1/2"
19,0
26,0
86,0
PCS
0469009135
19,0
1/2"
19,0
27,5
86,0
PCS
