AFT reusable pressure fitting, BSP nut flat seat

Application:

AFT pressure fitting with RG union nut for coupling hoses on, for example, integrated foam and washing systems. Can be maintained when the hoses become defective and need to be replaced.

Construction:

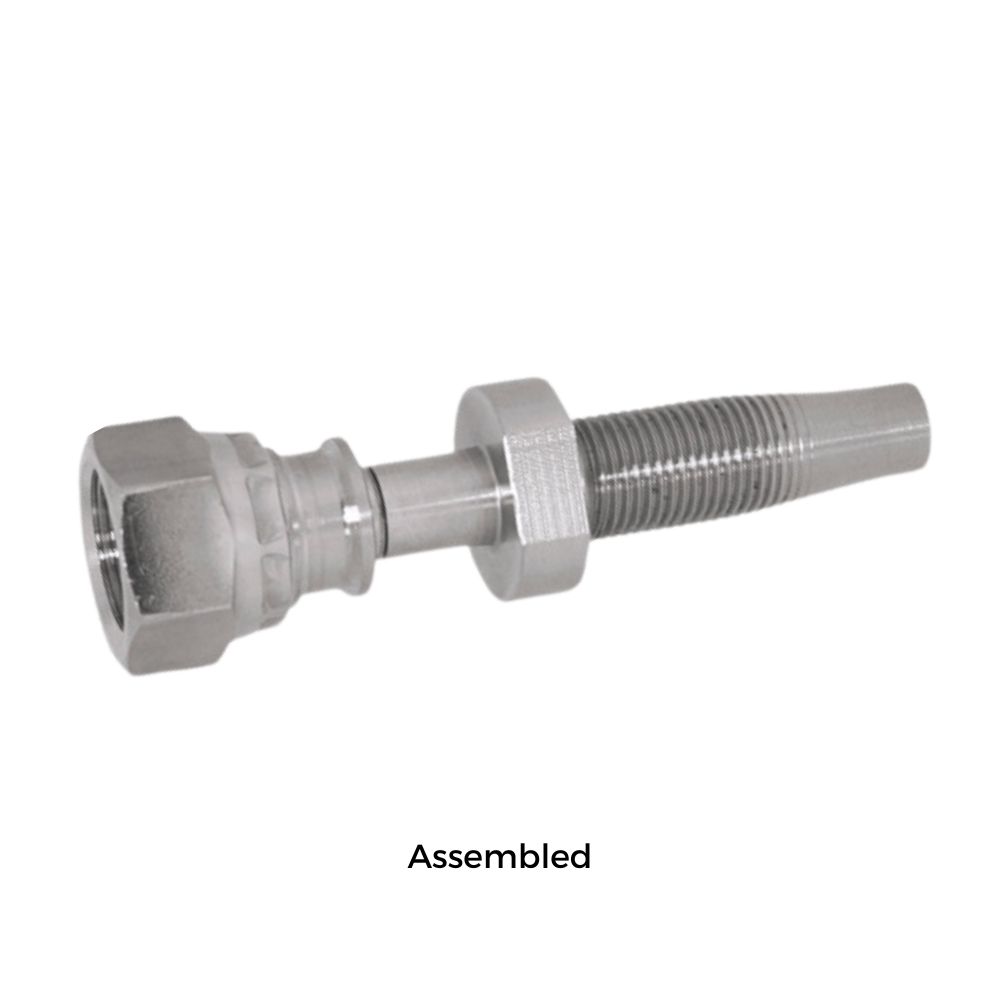

The pressure fitting consists of a connection piece and a sleeve that are screwed into each other, thereby creating a strong coupling of the hose.



Technical specifications

Quality:

Both connection piece and sleeve are made of stainless steel AISI 304.

Product number Nominal dim.
mm.
Connection
RG
Ø ID hose
mm.
Ø OD hose
mm.
Length L
mm.
Base unit
0469009104
12,0
1/2"
12,0
22,0
72,8
PCS
0469009110
12,0
1/2"
12,0
19,0
72,8
PCS
0469009111
12,0
1/2"
12,0
22,0
72,8
PCS
