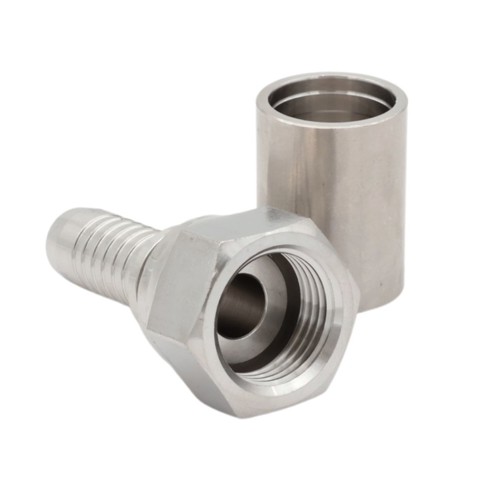

Press Coupling f. smooth PTFE hose w. braid, BSP nut flat seat

Application:

Suitable for chemistry tasks as well as media with high temperature requirements. Can also be used on filling equipment.

Construction:

The coupling consists of a connection piece and a sleeve that are pressed together under great pressure and thereby creates a strong and very smooth transition between the hose and coupling. Special design is possible.

Technical specifications

Quality:

Both connection piece and sleeve are made of stainless steel AISI 316.

Product number Nominal dim.
mm.
Connection
RG
Ø ID hose
mm.
Ø OD hose
mm.
Length L
mm.
Base unit
0466030610
6,0
1/4"
6,0
10,0
41,0
PCS
0466031014
10,0
3/8"
10,0
14,0
45,0
PCS
0466031320
13,0
1/2"
13,0
20,0
45,0
PCS
0466032025
20,0
3/4"
20,0
25,0
59,0
PCS
0466032530
25,0
1"
25,0
30,0
70,5
PCS
