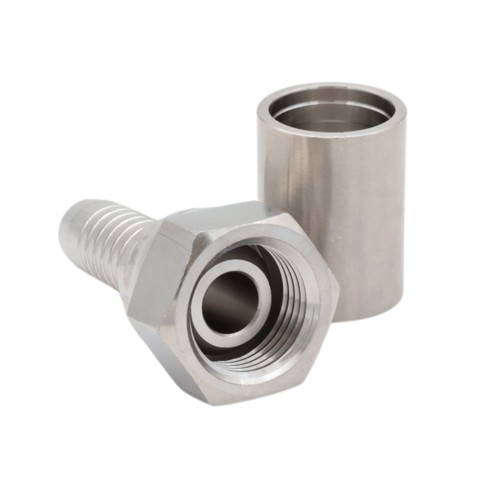

Press Coupling f. smooth PTFE hose w. braid, BSP nut with 60° cone

Application:

Suitable for chemistry tasks as well as media with high temperature requirements. Can also be used on filling equipment.

Construction:

The coupling consists of a connection piece and a sleeve that are pressed together under great pressure and thereby creates a strong and very smooth transition between the hose and coupling. Special design is possible.

Technical specifications

Quality:

Both connection piece and sleeve are made of stainless steel AISI 316.

Product number Nominal dim.
mm.
Connection
RG
Ø ID hose
mm.
Ø OD hose
mm.
Length L
mm.
Base unit
0466040307
3,2
1/8"
3,2
7,0
30,2
PCS
0466040508
5,0
1/4"
5,0
8,0
38,0
PCS
0466040610
6,0
1/4"
6,0
10,0
44,0
PCS
0466040610A
6,0
3/8"
6,0
10,0
44,0
PCS
0466041014
9,5
3/8"
10,0
14,0
49,5
PCS
0466041014A
9,5
1/2"
9,5
14,0
49,5
PCS
0466041320
13,0
1/2"
13,0
20,0
51,0
PCS
0466041320B
13,0
3/4"
13,0
20,0
51,0
PCS
0466042535
25,0
1"
25,0
35,0
75,5
PCS
0466042535A
25,0
1 1/4"
25,0
35,0
75,5
PCS
