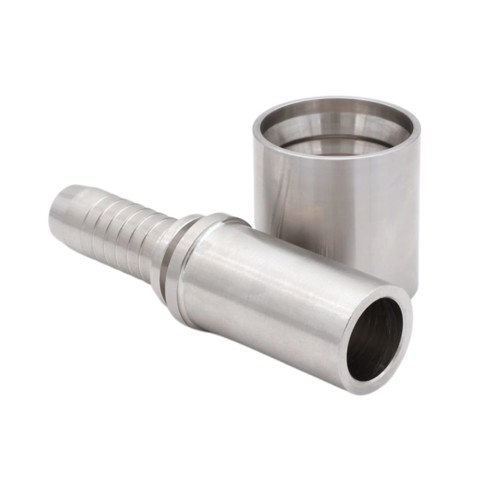

Standpipe

Application:

For product hoses, e.g. on filling equipment where the requirement is a very high level of hygiene.

Construction:

The coupling consists of a connection piece and a sleeve that are pressed together under great pressure and thereby creates a strong and very smooth transition between the hose and coupling.

Technical specifications

Quality:

Both connection piece and sleeve are made of stainless steel AISI 316.
Supplied with pipe end DIN 2353.

Product number Nominal dim.
mm.
Rørende Ø ID hose
mm.
Ø OD hose
mm.
Length L
mm.
Base unit
0465000614
6,0
6,0
6,0
14,0
56,0
PCS
0465000614A
6,0
8,0
6,0
14,0
56,0
PCS
0465000816
8,0
8,0
8,0
16,0
59,3
PCS
0465001018
10,0
10,0
10,0
18,0
59,3
PCS
0465001020
10,0
10,0
10,0
20,0
59,3
PCS
0465001020A
10,0
12,0
10,0
20,0
58,8
PCS
0465001220
12,0
12,0
12,0
20,0
63,0
PCS
0465001222
12,0
12,0
12,0
22,0
63,0
PCS
0465001225
12,0
12,0
12,0
25,0
63,0
PCS
0465001225A
12,0
12,7
12,0
25,0
63,0
PCS
0465001225B
12,0
16,0
12,0
25,0
70,0
PCS
Product number Nominal dim.
mm.
Rørende Ø ID hose
mm.
Ø OD hose
mm.
Length L
mm.
Base unit
0465001225C
12,0
18,0
12,0
25,0
66,0
PCS
0465001225D
12,0
20,0
12,0
25,0
75,0
PCS
0465001625
16,0
16,0
16,0
25,0
70,0
PCS
0465001628
16,0
16,0
16,0
28,0
70,0
PCS
0465001931
19,0
20,0
19,0
31,0
84,0
PCS
0465002028
20,0
20,0
20,0
28,0
84,0
PCS
0465002031
20,0
20,0
20,0
31,0
84,0
PCS
0465002031A
20,0
25,0
20,0
31,0
89,3
PCS
0465002531
25,0
25,0
25,0
31,0
89,3
PCS
0465002537
25,0
25,0
25,0
37,0
89,3
PCS
Product number Nominal dim.
mm.
Rørende Ø ID hose
mm.
Ø OD hose
mm.
Length L
mm.
Base unit
0465002539
25,0
25,0
25,0
39,0
89,3
PCS
