AG hose rack

Application:

AG hose hanger 310 & 320 for gentle suspension and even very heavy hoses.

Construction:

The hose hanger is fitted with a bottom plate that protects the hoses against pressure and wear. At the rear, the hose hanger is equipped with three strong brackets for wall mounting.

Technical specifications

Quality:

Made of stainless steel, DIN 1.4301, which is subsequently electropolished.

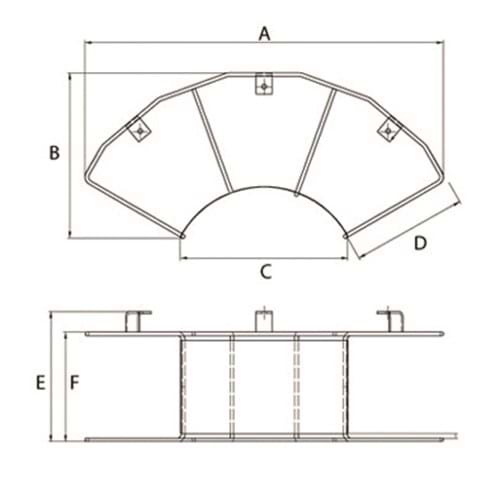

Product number Inner dia.
mm
Width A
mm
Width C
mm.
Depth D
mm.
Bredde E - mm. Bredde F - mm. Base unit Height B
mm
0485000000
310,0
500,0
382,0
70,0
220,0
150,0
PCS
192,0
0485000001
320,0
544,0
367,0
116,0
220,0
160,0
PCS
220,0
0485000010
320,0
785,0
367,0
253,0
286,0
241,0
PCS
363,0
