Milkland

Application:

The hose is suitable for transporting milk and other foods.

Construction:

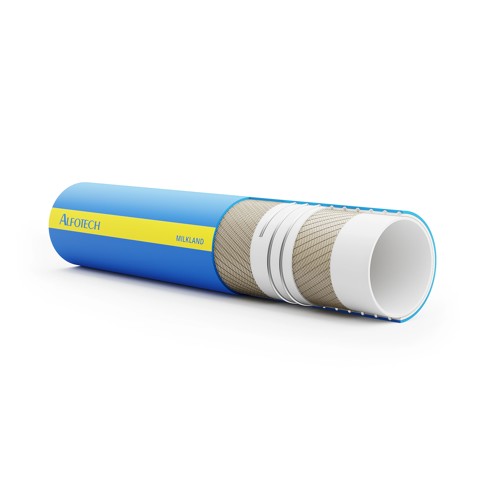

The Milkland hose is made of natural rubber both inside and out. The hose is white and smooth on the inside and blue on the outside with canvas structure. The hose is built around a steel spiral for extra great flexibility.

  • Designed for tasteless and odourless transport of media
  • Built-in steel spiral
  • Ozone and weather resistant

Technical specifications

Temperature:

The temperature ranges from -30°C to +85°C.
The hose can be sterilized at +120°C for a maximum of 30 minutes.

Safety factor:

Safety factor: ≥ 3 times working pressure.

Pressure:

All pressures are stated at the temperature +20°C.

Standards:

EC 1935/2004 and 2023/2006/EC (GMP), FDA, D.M. 21.03.73, and BfR. The material is free of animal derivatives, phthalates, and adipates. Materials subject to restrictions according to EC 1907/2006 (REACH) Batch number for full traceability.

Approvals

Product number Inner dia.
mm
Outer dia.
mm
Bending radius
mm.
Working pressure
bar
Burst pressure
bar
Vacuum
bar
Color Metres per
coil
Net weight
kg.
Base unit
0401000251
25,0
36,0
75,0
6,0
18,0
0,90
Red
40,0
0,750
MTR
0401000252
25,0
36,0
75,0
6,0
18,0
0,90
Yellow
40,0
0,750
MTR
0401000253
25,0
36,0
75,0
6,0
18,0
0,90
Green
40
0,750
MTR
0401000254
25,0
36,0
75,0
6,0
18,0
0,90
Blue
40,0
0,750
MTR
0401000257
25,0
36,0
75,0
6,0
18,0
0,90
Blue
40,0
0,75
MTR
0401000324
32,0
43,0
100,0
6,0
18,0
0,90
Blue
40,0
0,950
MTR
0401000381
38,0
50,0
115,0
6,0
18,0
0,90
Red
40,0
1,130
MTR
0401000382
38,0
50,0
115,0
6,0
18,0
0,90
Yellow
40,0
1,130
MTR
0401000384
38,0
50,0
115,0
6,0
18,0
0,90
Blue
40,0
1,130
MTR
0401000387
38,0
50,0
115,0
6,0
18,0
0,90
Blue
40,0
1,13
MTR
0401000404
40,0
52,0
115,0
6,0
18,0
0,90
Blue
40,0
1,130
MTR
Product number Inner dia.
mm
Outer dia.
mm
Bending radius
mm.
Working pressure
bar
Burst pressure
bar
Vacuum
bar
Color Metres per
coil
Net weight
kg.
Base unit
0401000511
51,0
63,0
150,0
6,0
18,0
0,90
Red
40,0
1,440
MTR
0401000512
51,0
63,0
150,0
6,0
18,0
0,90
Yellow
40,0
1,440
MTR
0401000514
51,0
63,0
150,0
6,0
18,0
0,90
Blue
40,0
1,440
MTR
0401000517
51,0
63,0
150,0
6,0
18,0
0,90
Blue
40,0
1,44
MTR
0401000524
52,0
64,0
150,0
6,0
18,0
0,9
Blue
40,0
1,44
MTR
0401000641
63,5
76,5
190,0
6,0
18,0
0,90
Red
40,0
2,150
MTR
0401000642
63,5
76,5
190,0
6,0
18,0
0,90
Yellow
40,0
2,150
MTR
0401000645
63,5
76,5
180,0
6,0
18,0
0,90
Blue
40,0
2,150
MTR
0401000647
63,5
76,5
190,0
6,0
18,0
0,90
Blue
40,0
2,15
MTR
0401000761
76,0
90,0
225,0
6,0
18,0
0,90
Red
40,0
2,650
MTR
Product number Inner dia.
mm
Outer dia.
mm
Bending radius
mm.
Working pressure
bar
Burst pressure
bar
Vacuum
bar
Color Metres per
coil
Net weight
kg.
Base unit
0401000762
76,0
90,0
225,0
6,0
18,0
0,90
Yellow
40,0
2,650
MTR
0401000763
76,0
90,0
225,0
6,0
18,0
90
Green
40,0
2,650
MTR
0401000764
76,0
90,0
225,0
6,0
18,0
0,90
Blue
40,0
2,650
MTR
0401000765
76,0
90,0
250,0
6,0
18,0
0,90
Blue
40,0
2,800
MTR
