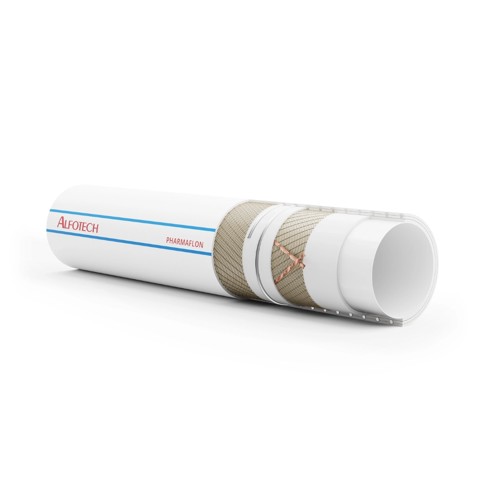

Pharmaflon

Application

Universal hose suitable for transporting food and pharmaceutical products where there are high demands on the purity of the product. Developed specifically to withstand high temperatures and dynamic loads.

Construction

Pharmaflon is made of MFA on the inside and EPDM on the outside. The hose is built around a steel spiral for extra great flexibility.

Reinforced with spiral and several layers of polyester
2 built-in copper wires for dissipation of static electricity
Parts in contact with the media are white and with smooth surface
Ozone and weather resistant

Download data sheet Go to hose assembly

Technical specifications

Temperature

The temperature ranges from-50°C to +170°C depending on the media.
Can be sterilized at +130°C for a maximum of 30 minutes.

Safety factor:

Safety factor: ≥ 4 times working pressure.

Pressure:

All pressures are stated at the temperature +20°C.

Standards:

EC 1935/2004 - 2023/2006/EC (GMP) - Regulation 2002/95EC (RoHS) - D.M 21/03/73 - US Pharmacopeia (USP Class VI). The material is free of animal derivatives, phthalates, and adipates. Materials subject to restrictions according to EC 1907/2006 (REACH). Batch number for full traceability.

Approvals

Product number	Inner dia. mm	Outer dia. mm	Bending radius mm.	Working pressure bar	Burst pressure bar	Vacuum bar	Color	Metres per coil	Net weight kg.	Base unit
0423000100	10,0	22,0	45,0	10,0	40,0	0,90	White	20,0	0,40	MTR
0423000130	13,0	25,0	60,0	10,0	40,0	0,90	White	20,0	0,550	MTR
0423000200	19,0	31,0	90,0	10,0	40,0	0,90	White	30,0	0,720	MTR
0423000250	25,0	37,0	140,0	10,0	40,0	0,90	White	30,0	0,890	MTR
0423000320	32,0	45,0	200,0	10,0	40,0	0,90	White	30,0	1,25	MTR
0423000380	38,0	51,0	250,0	10,0	40,0	0,90	White	30,0	1,470	MTR
0423000510	51,0	65,5	300,0	10,0	40,0	0,90	White	30,0	2,080	MTR
0423000640	63,5	79,5	380,0	10,0	40,0	0,90	White	20,0	3,000	MTR
0423000760	76,0	92,0	500,0	10,0	40,0	0,90	White	20,0	3,480	MTR
0423001000	100,0	118,0	550,0	10,0	40,0	0,90	White	20,0	4,900	MTR
