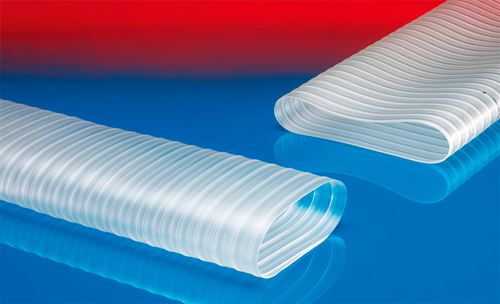

FLAT PUR-C 335 FOOD AS

Application:

The FLAT PUR-C 335 FOOD AS hose is suitable for food and pharmacuetical industries. The hose is used, for example, for transport of dry matter such as: rice, grain, flour, sugar, dairy products, coffee, teas, as well as frozen foods. The hose can be used in ATEX areas.

Construction:

FLAT PUR-C 335 Food AS is made of ether-polyurethane. The hose is provided with copper wire for dissipation of static electricity. The hose is smooth both inside and out, suitable for low temperatures and antistatic.

  • Designed for tasteless and odourless transport of media
  • Resistant to vibrations, microorganisms, and hydrolysis
  • Resistant to oils and chemicals
  • Antistatic through the hose wall <109
  • Abrasion resistant

Technical specifications

Temperature:

The temperature ranges from -40°C to +90°C.

Pressure:

All pressures are stated at the temperature +20°C.



Standards:

The hose complies with EC 1935/2004, 2023/2006/EC (GMP), FDA Standards No. 21 CFR 177.2600, EU Directive 2015/174, RoHS Guidelines, EU Regulation 10/2011/EU, German TRGS 727, and ATEX 2014/34/EU (1999/92/EC). The hose may be used for suction of explosive dust (zone 22 indoors) and for transport of non-combustible liquids (Zone 1 and 2 - gases).

Approvals

Product number Inner dia.
mm
Outer dia.
mm
Working pressure
bar
Color Metres per
coil
Net weight
kg
Base unit Thickness
mm
0428760080
80,0
85,0
0,51
Transparent
5,0
0,470
MTR
2,5
0428760085
85,0
90,0
0,48
Transparent
10,0
0,50
MTR
2,5
0428760105
105,0
110,0
0,41
Transparent
5,0
0,590
MTR
2,5
0428760125
125,0
130,0
0,330
Transparent
5,0
0,730
MTR
2,5
0428760155
155,0
160,0
0,265
Transparent
5,0
0,900
MTR
2,5
0428760160
160,0
165,0
0,255
Transparent
5,0
0,930
MTR
2,5
0428760180
180,0
185,0
0,23
Transparent
5,0
1,050
MTR
2,5
0428760200
203,0
208,0
0,200
Transparent
5,0
1,140
MTR
2,5
0428760205
205,0
210,0
0,200
Transparent
5,0
1,190
MTR
2,5
0428760220
220,0
225,0
0,185
Transparent
5,0
1,280
MTR
2,5
0428760305
305,0
310,0
0,135
Transparent
5,0
1,770
MTR
2,5
0428760450
450,0
455,0
0,105
Transparent
5,0
2,340
MTR
2,5
