Plutone PU Press

Application:

Plutone PU Press is suitable for transporting food and pharmaceuticals such as pills, granulates, powder, beverages, wine, vinegar, and spirits with max. 20% alcohol.

Construction:

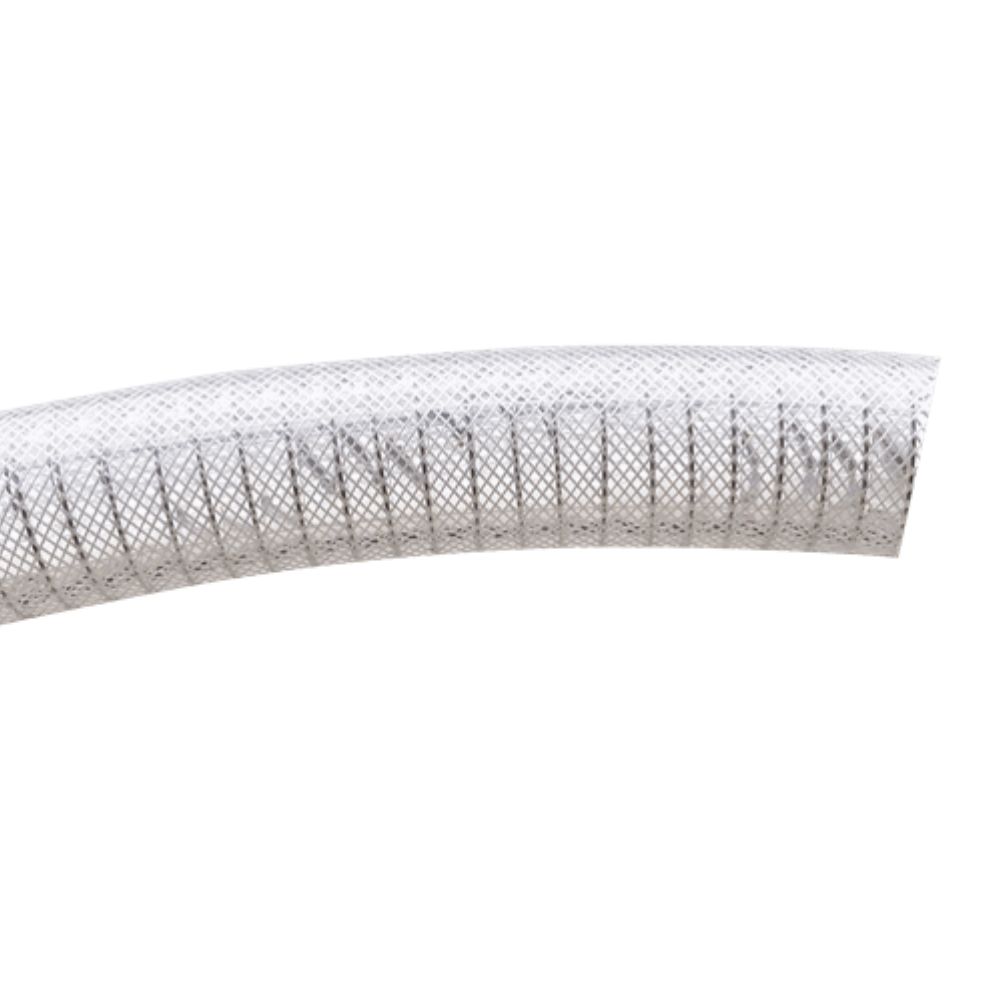

Plutone PU Press is a flexible hose made of ether-based hygienic thermoplastic TPU and reinforced with polyester fabric, as well as stainless AISI 302 steel spiral. The hose is smooth both inside and out, which improves the flow in the hose, as well as transparent, so that circulation of the medium is clearly visible. Plutone PU Press is resistant to oils and fats under normal conditions of use.

  • Designed for tasteless and odourless transport of media
  • Resistant to hydrolysis and microorganisms
  • Suitable for media with alcohol up to 20%
  • Good chemical resistance
  • Ozone, wear, and weather resistant

Technical specifications

Temperature:

The temperature ranges from -30°C to +90°C.

Pressure:

All pressures are stated at the temperature +20°C.

Standards:

EU Regulation 10/2011/EC (Class A, B, and C), USP CLASS VI and FDA-approved (Title 21 CFR 177.2600).

Safety factor:

Safety factor: ≥ 3 times working pressure.

Approvals

Product number Inner dia.
mm
Outer dia.
mm
Bending radius
mm
Working pressure
bar
Burst pressure
bar
Vacuum
bar
Color Metres per
coil
Net weight
kg
Base unit
0408950130
13,0
23,5
65,0
19,0
57,0
1,00
Transparent
60,0
0,360
MTR
0408950200
20,0
32,0
100,0
17,0
51,0
1,00
Transparent
60,0
0,590
MTR
0408950250
25,0
37,5
125,0
12,0
36,0
1,00
Transparent
60,0
0,750
MTR
0408950320
32,0
44,0
160,0
11,0
33,0
0,90
Transparent
60,0
0,880
MTR
0408950380
38,0
51,0
190,0
10,0
30,0
0,90
Transparent
30,0
1,110
MTR
0408950510
51,0
65,0
255,0
8,0
24,0
0,80
Transparent
30,0
1,710
MTR
