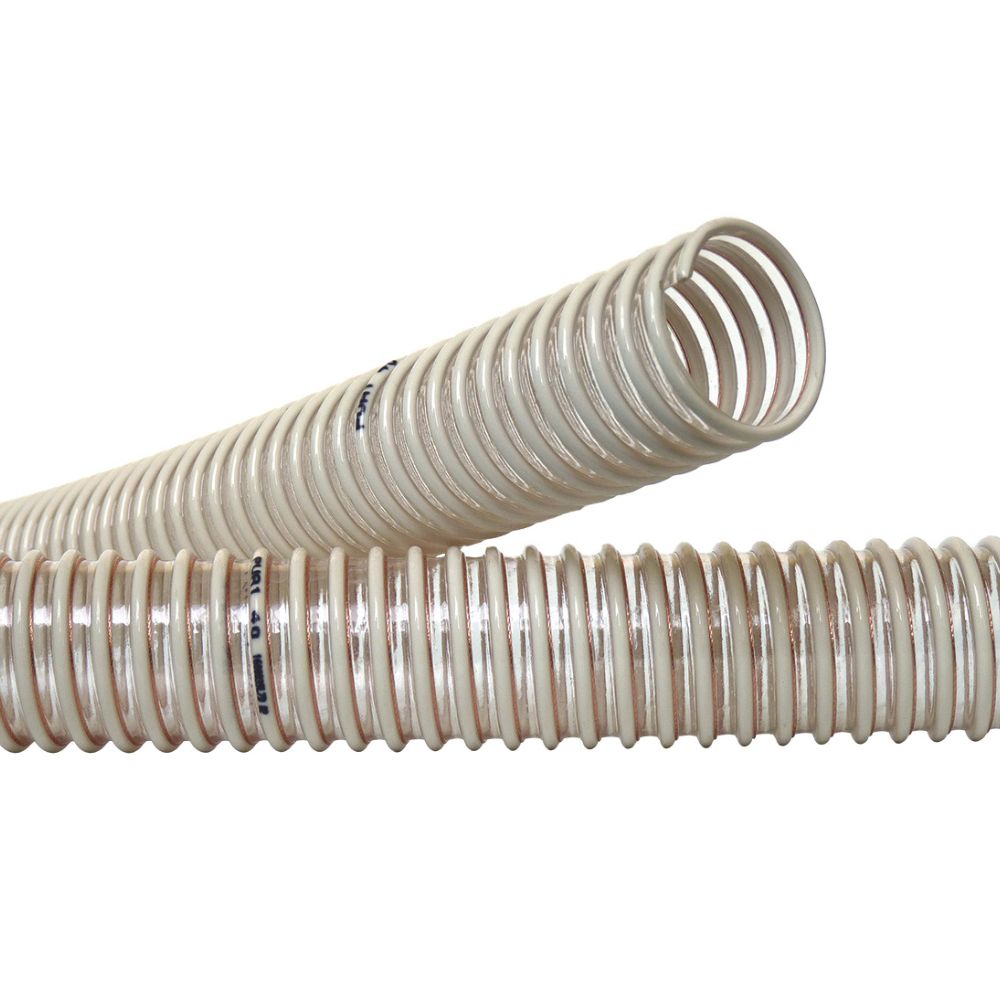

Spirabel PU A1

Application:

Hose suitable for transporting granulates, air and steams.

Construction:

Flexible hose made of polyurethane, reinforced with a strong PVC spiral - embedded copper wire for dissipation of static electricity. The hose is transparent and smooth.

Very flexible and elastic hose
Reinforced with white PVC spiral
Reinforced with copper-plated steel spiral

Download data sheet Go to hose assembly

Technical specifications

Temperature:

The temperature ranges from -20°C to +50°C.

Pressure:

All pressures are stated at the temperature +20°C.

Standards:

EC 1935/2004 and 2023/2006/EC (GMP), EU Regulation 10/2011/EU.
The manufacture is free of phthalates.

Approvals

Product number	Inner dia. mm	Outer dia. mm	Bending radius mm.	Vacuum bar	Color	Metres per coil	Net weight kg.	Base unit
0409100300	30,0	36,0	45,0	0,50	Transparent	10,0	0,19	MTR
0409100380	38,0	44,4	57,0	0,40	Transparent	10,0	0,23	MTR
0409100500	50,0	57,0	75,0	0,40	Transparent	10,0	0,34	MTR
0409100600	60,0	66,8	90,0	0,40	Transparent	10,0	0,410	MTR
0409100640	63,0	70,2	94,0	0,40	Transparent	10,0	0,41	MTR
0409100760	76,0	84,8	114,0	0,40	Transparent	10,0	0,55	MTR
0409100800	80,0	89,0	120,0	0,40	Transparent	10,0	0,61	MTR
0409101000	100,0	109,4	150,0	0,40	Transparent	10,0	0,82	MTR
0409101100	110,0	120,4	165,0	0,30	Transparent	10,0	0,890	MTR
0409101600	160,0	173,0	320,0	0,30	Transparent	10,0	1,550	MTR
