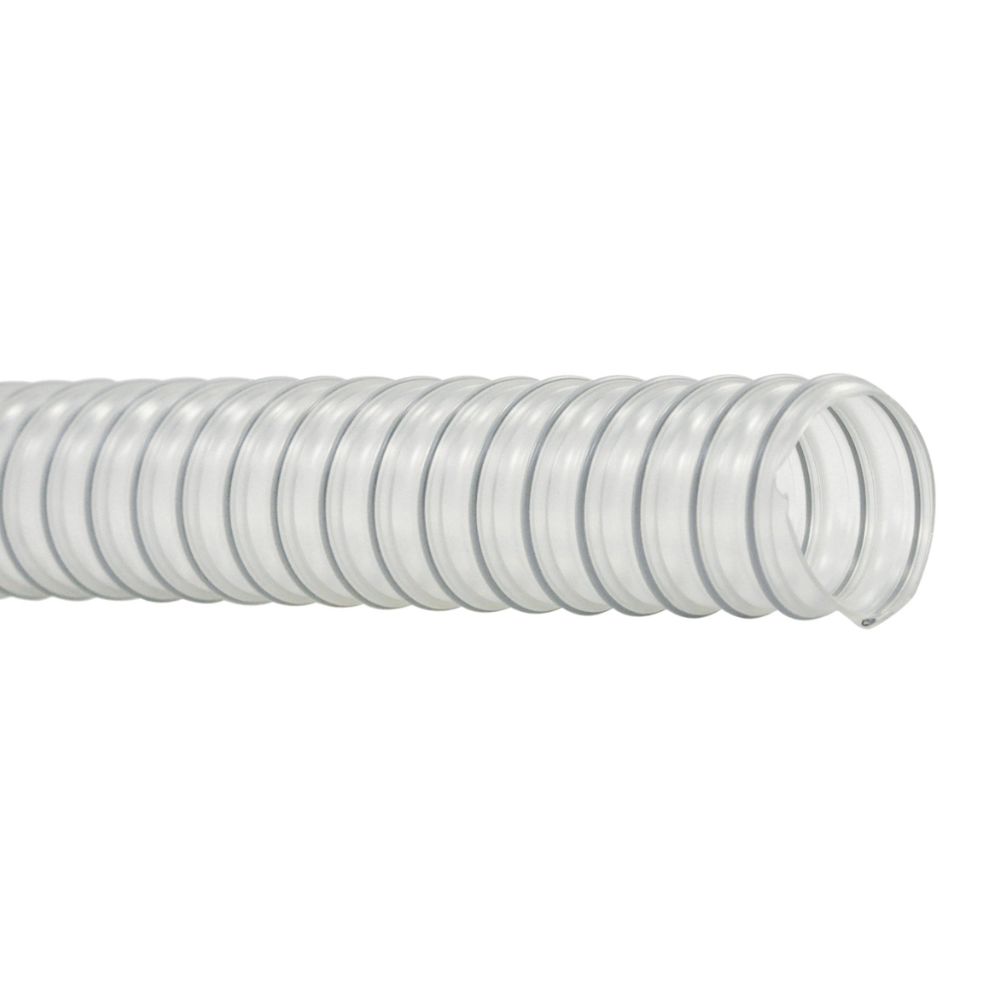

Vulcano PU 04 H Etere

Application:

Vulcano PU-H 04 is a very flexible and hygienic hose that is suitable for transporting fatty foods, as well as pharmaceuticals, biotechnology, and cosmetics in powder form.

Construction:

Vulcano PU-H 04 is a very flexible hose made of clear polyurethane and reinforced with PU-coated grey steel spiral. The hose is smooth on the inside and transparent, so that the circulation of the medium is clearly visible. Resistant to oils and fats under normal conditions of use. The hose has a good bending radius and is microorganism and hydrolysis resistant.

Designed for tasteless and odourless transport of media
Wear, ozone, and weather resistant

OBS!
Note that the arrow on the hose indicates the flow direction.

Download productsheet Go to hose assembly

Technical specifications

Temperature:

The temperature ranges from -40°C to +60°C.

Pressure:

All pressures are stated at the temperature +20°C.

Standards:

EU Regulation 10/2011/EC, FDA-approved (Title 21 CFR 177.2600, Class D, E, and F).

Approvals

Product number	Inner dia. mm	Outer dia. mm	Bending radius mm.	Vacuum bar	Color	Metres per coil	Net weight kg.	Base unit
0409200510	51,0	52,0	40,0	0,40	Transparent	20,0	0,20	MTR
0409200600	60,0	61,0	50,0	0,40	Transparent	20,0	0,23	MTR
0409200650	65,0	66,0	56,0	0,40	Transparent	20,0	0,25	MTR
0409200760	76,0	77,0	65,0	0,40	Transparent	20,0	0,32	MTR
0409200800	80,0	81,0	65,0	0,40	Transparent	20,0	0,33	MTR
0409200900	90,0	91,0	75,0	0,40	Transparent	20,0	0,37	MTR
0409201020	102,0	103,0	85,0	0,30	Transparent	15,0	0,42	MTR
0409201400	140,0	141,0	115,0	0,20	Transparent	15,0	0,65	MTR
0409201600	160,0	161,0	130,0	0,15	Transparent	15,0	0,87	MTR
0409201650	165,0	166,0	130,0	0,15	Transparent	15,0	0,89	MTR
