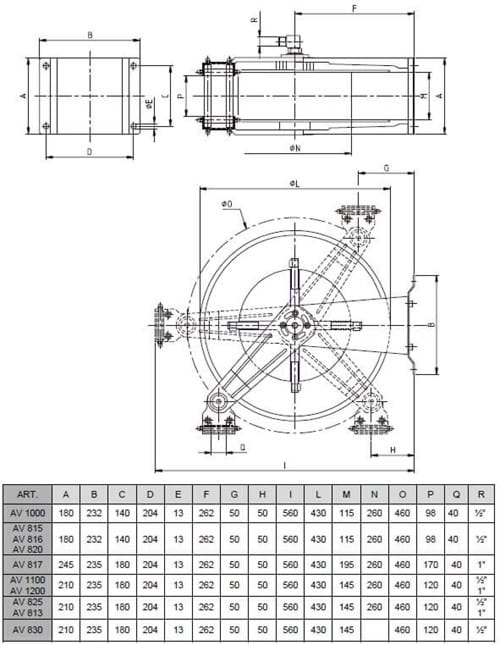

Hose reel AFT 1000-1100 AV

Application:

AFT 1000-1100 AV hose reel is a spring reel for flush hoses on low pressure cleaning systems or other flush hoses up to 200 bar. Fits 3/8” and 1/2” hose up to 20 metres long.

Construction:

Strong construction made exclusively of stainless steel materials, AISI 304, surface-treated. Hoses are wound up by means of sectional spring, which ensures a uniform extension and winding.

Technical specifications

Quality:

The hose reels are made of stainless steel AISI 304.

Accessories:

Can be delivered with hinged wall bracket.

Temperature:

The temperature ranges up to +90°C.

Product number Nominal dim.
inch
Max. hose length
in m
Connection
RG
Width D
mm
Length L
mm
Working pressure
bar
Net weight
kg
Base unit Height B
mm
0431001000
1/2"
15,0
1/2”
480,0
250,0
200,0
13,0
PCS
500,0
0431001100
1/2"
20,0
1/2”
480,0
280,0
200,0
18,0
PCS
500,0
