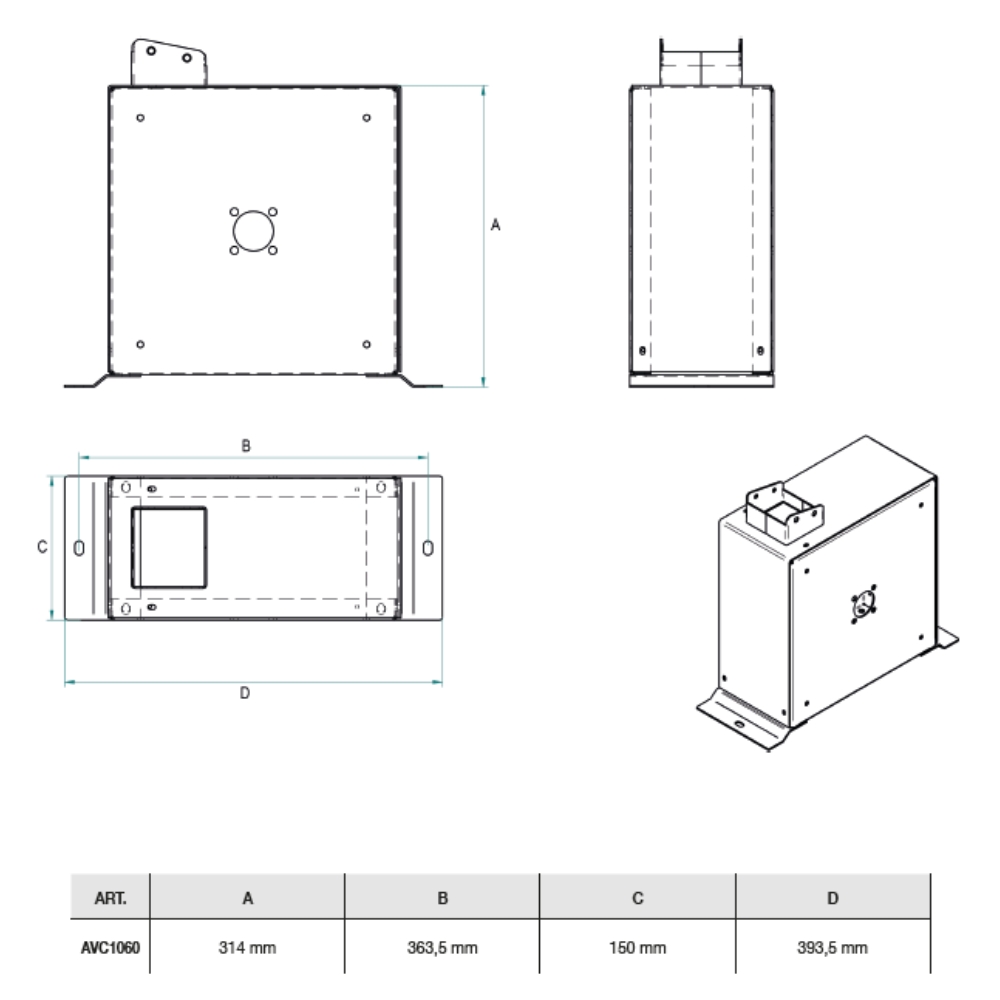

Hose reel AFT 1060 AVC

Application:

AFT 1060 AVC hose reel is a spring reel for, among other things, compressed air hoses or other functions up to 20 bar. Fits 1/4” up to 10 metres long.

Construction:

Strong construction made exclusively of stainless steel materials, AISI 304, surface-treated. Hoses are wound up by means of sectional spring, which ensures a uniform extension and winding.

Technical specifications

Quality:

The hose reels are made of stainless steel AISI 304.

Temperature:

The temperature ranges up to +90°C.

Product number Nominal dim.
inch
Max. hose length
in m
Connection
RG
Width D
mm
Length L
mm
Working pressure
bar
Net weight
kg
Base unit Height B
mm
0431001060
1/4"
10,0
1/4”
400,0
300,0
20,0
9,0
PCS
400,0
