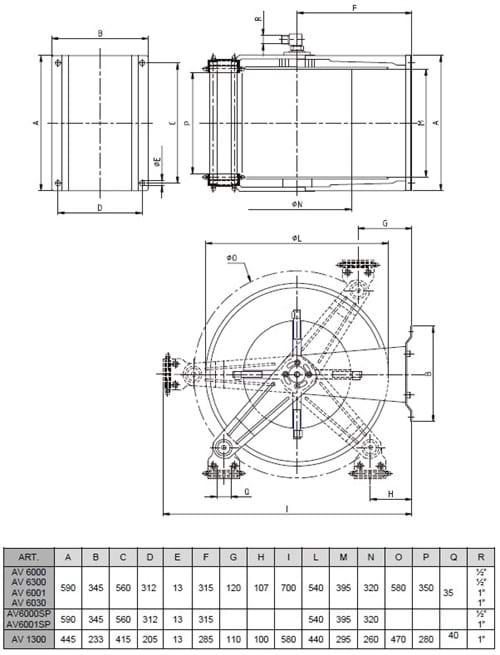

Hose reel AFT 6000-6001 AV

Application:

AFT 6000-6001 AV hose reel is a spring reel for winding hoses with a working pressure of up to 200 bar. Fits either 3/8”, 1/2”, 3/4, and 1” hose up to 60 metres long.

Construction:

Strong construction made exclusively of stainless steel materials, AISI 304, surface-treated. Hoses are wound up by means of sectional spring, which ensures a uniform extension and winding.

Technical specifications

Quality:

The hose reels are made of stainless steel AISI 304.

Accessories:

Can be delivered with hinged wall bracket.

Temperature:

The temperature ranges up to +90°C.

Product number Nominal dim.
inch
Max. hose length
in m
Connection
RG
Bredde D mm. Length L
mm.
Working pressure
bar
Net weight
kg.
Base unit Height B
mm
0431006000
1/2"
60,0
1"
590,0
590,0
20,0
50,0
PCS
590,0
0431006001
1"
30,0
1”
590,0
590,0
20,0
51,0
PCS
590,0
