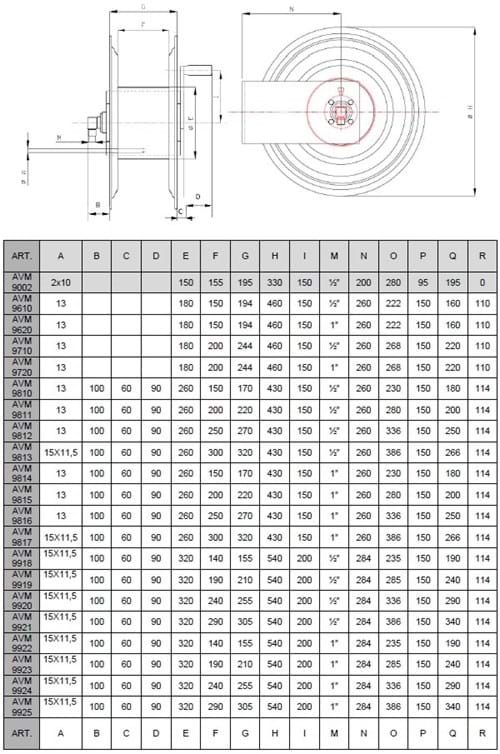

Hose reel AFT 9002-9620 AVM

Application:

AFT 9002-9620 AVM is a manual hose reel for flush hoses on low pressure cleaning systems or other flush hoses up to 200 bar. Fits 1/2”, 3/4”, and 1” hose up to 35 metres long.

Construction:

Strong construction made exclusively of stainless steel materials, AISI 304, surface-treated. The hose reel is suspended in the wall bracket on both sides in two strong bearings. Hoses are wound up manually using a handle located on the side of the reel.

Technical specifications

Quality:

The hose reels are made of stainless steel AISI 304.

Accessories:

Can be delivered with hinged wall bracket.

Temperature:

The temperature ranges up to +90°C.

Product number Nominal dim.
inch
Max. hose length
in m
Connection
RG
Width D
mm
Length L
mm
Working pressure
bar
Net weight
kg
Base unit Height B
mm
0431009002
1/2"
0
0
460,0
300,0
200,0
14,0
PCS
500,0
0431009320
3/4"
0
0
460,0
300,0
20,0
14,0
PCS
500,0
0431009610
1/2"
30,0
1/2”
460,0
300,0
200,0
14,0
PCS
500,0
0431009620
3/4"
20,0
3/4”
460,0
300,0
20,0
14,0
PCS
500,0
0431009630
1"
10,0
1”
460,0
300,0
20,0
14,0
PCS
500,0
