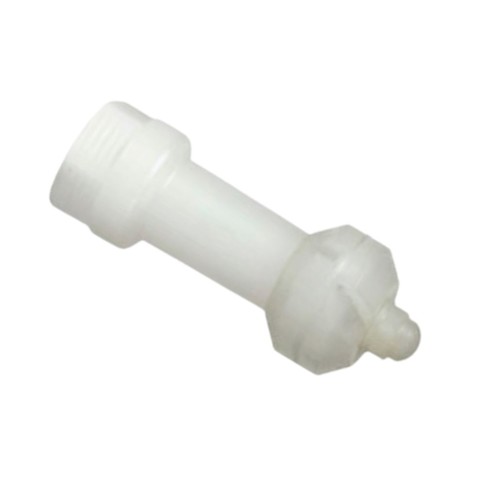

Rotor nozzles, PVDF

Application:

Rotating nozzle used for cleaning tanks up to 1 meter in diameter. The nozzle is lubricated by the cleaning fluid.

Technical specifications

Quality:

Made of PVDF.

Temperature:

The temperature ranges up to max. +90°C.

Product number Connection
RG
Angle
degrees
Water flow
l/min at 2.0 bar
Water flow
l/min at 3.0 bar
Water flow
l/min at 5.0 bar
Washing radius
metres
Range radius
metres
Base unit
0605TC1000
1/2"
360
20,0
25,0
32,0
0,5
1,00
PCS
0605TC1001
1/2"
180
13,0
16,0
21,0
0,5
1,00
PCS
