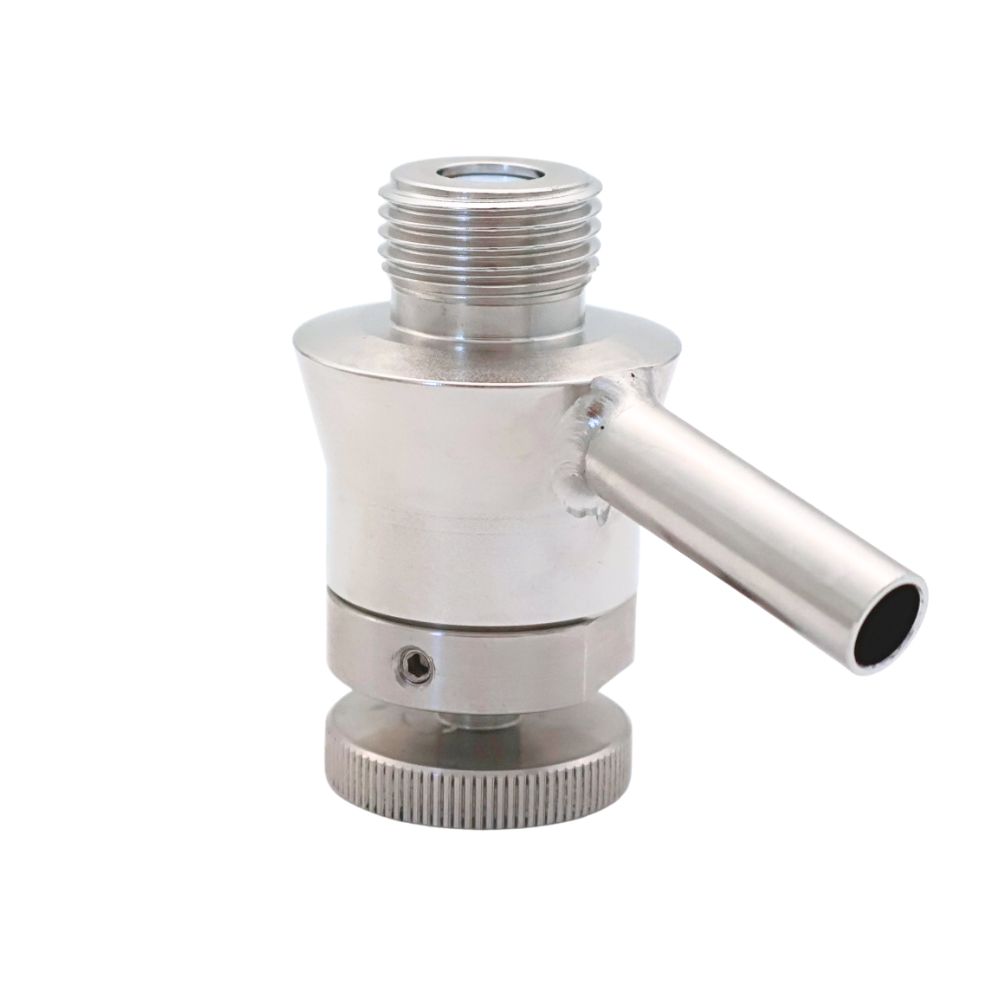

Sampling valve without rinsing connection, BSP nipple

Application:

This sampling valve without rinsing connection with BSP nipple is designed for applications requiring accurate samples for the determination of taste, appearance, and microbiological and chemical parameters.

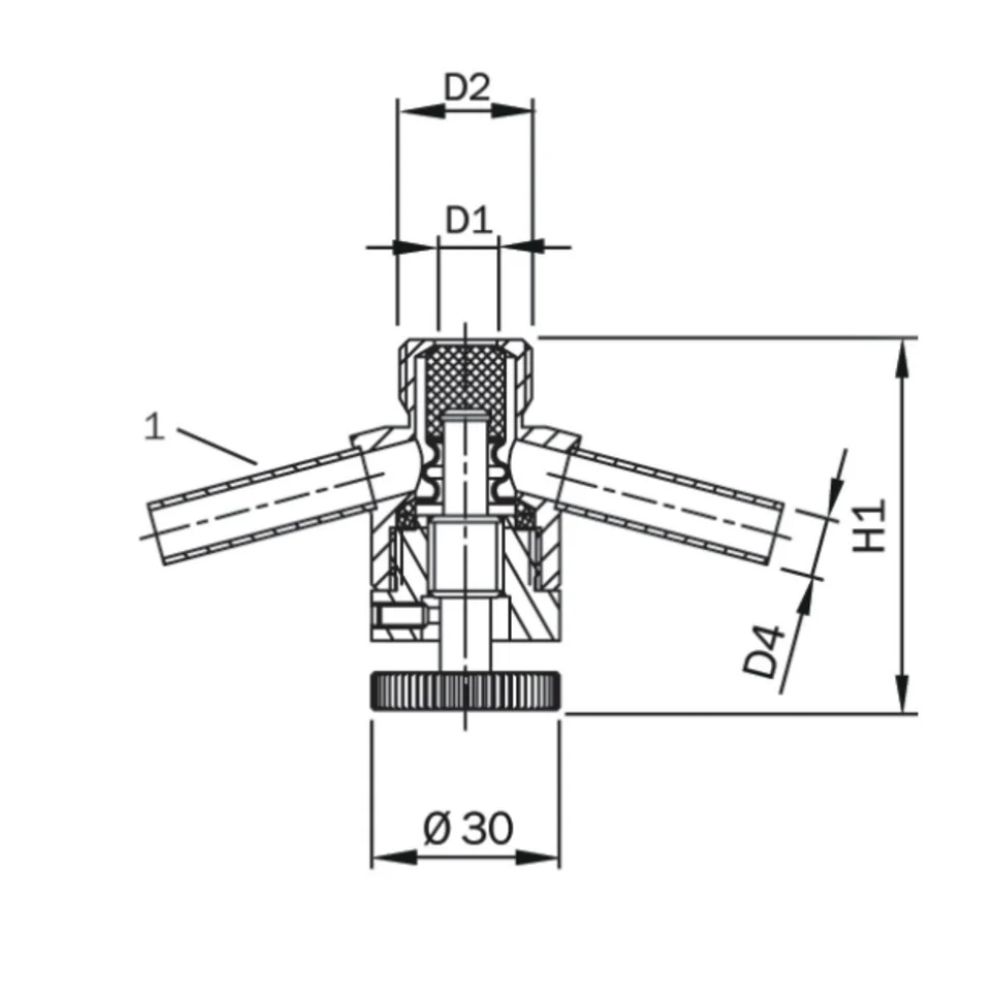

Construction:

• The sampling valve is constructed with a focus on hygiene and cleanability
• The valve comes in four different versions with a variety of connection types for a wide range of applications
• All manually operated variants are available with a lockable handwheel to protect against unauthorized access

Quality:

• Material in contact with product: Stainless Steel AISI 316L (1.4404)
• Inner surface roughness ≤ 0.8 µ
• Seal ring: PTFE (Teflon)
• EHEDG-certified

Operating conditions:

• Operating temperature: max 80°C
• Operating pressure: max. 10 bar
• CIP cleaning up to 90°C for max 30 min.
• Can be sterilized up to 135°C for max 30 min.
