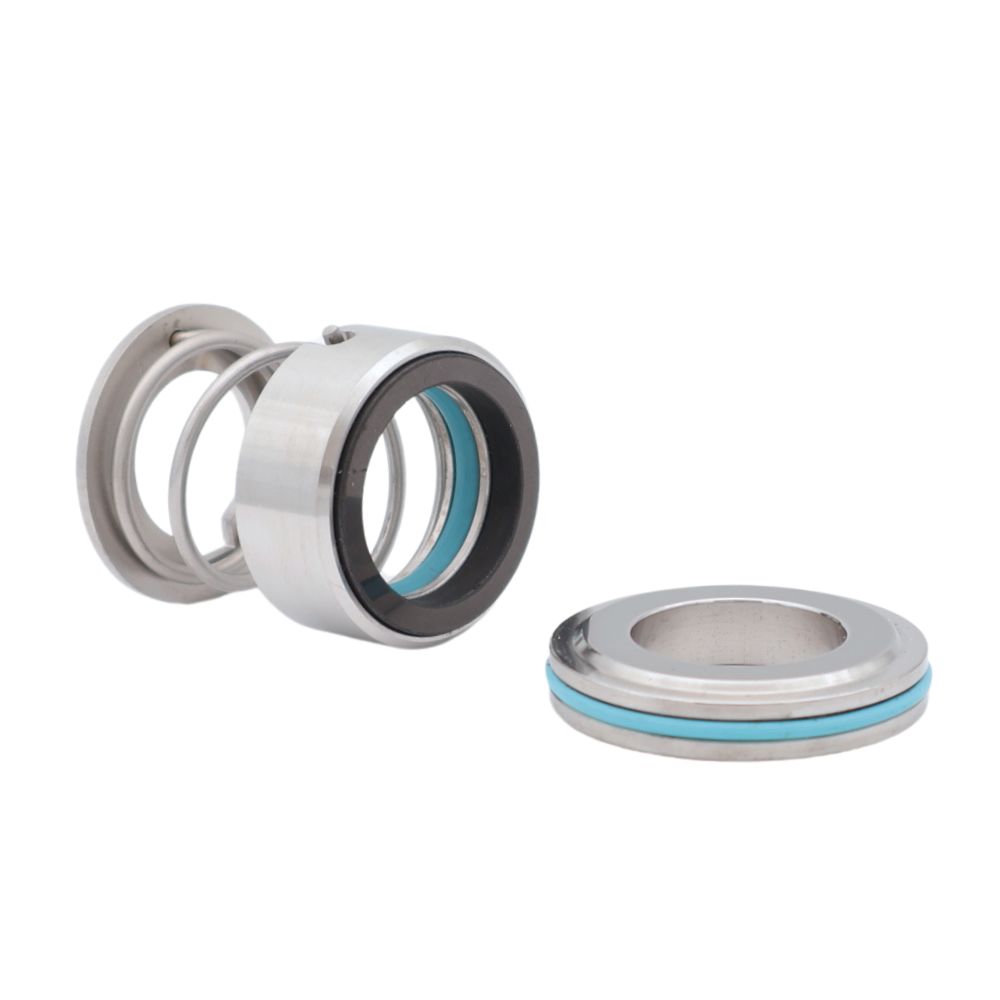

Fristam mechanical seal, low seat, right

Application:

  • Mechanical seal for Fristam pumps 22, 30 & 35 mm
  • Right direction of rotation

Construction:

  • The mechanical seal is an open type
  • Low seat mounted with O-ring
  • The rotating part is driven by a welded-on disc with groove
  • Provided with an O-ring that acts as secondary sealing around the shaft
  • Directional
  • The compression spring is open

Technical specifications

Quality:

  • Spring in stainless steel
  • Gaskets in either nitrile or EPDM
  • The slide ring is in carbon
  • The seat is made of stainless steel or silicon
Product number Shaft dia.
mm
Rotating part
material
Stationary part
material
Elastomer
type
Base unit
0347122241E
22,0
Kul
Stainless
EPDM
PCS
0347122241N
22,0
Kul
Stainless
NBR
PCS
0347122241V
22,0
Kul
Stainless
Viton
PCS
0347122245E
22,0
Kul
Sic
EPDM
PCS
0347122245N
22,0
Kul
Sic
NBR
PCS
0347122247E
22,0
Sic
Sic
EPDM
PCS
0347122247N
22,0
Sic
Sic
NBR
PCS
0347122247V
22,0
Sic
Sic
Viton
PCS
0347130241E
30,0
Kul
Stainless
EPDM
PCS
0347130241N
30,0
Kul
Stainless
NBR
PCS
0347130245E
30,0
Kul
Sic
EPDM
PCS
Product number Shaft dia.
mm
Rotating part
material
Stationary part
material
Elastomer
type
Base unit
0347130245N
30,0
Kul
Sic
NBR
PCS
0347135241E
35,0
Kul
Stainless
EPDM
PCS
0347135241N
35,0
Kul
Stainless
NBR
PCS
0347135245E
35,0
Kul
Sic
EPDM
PCS
0347135245N
35,0
Kul
Sic
NBR
PCS
