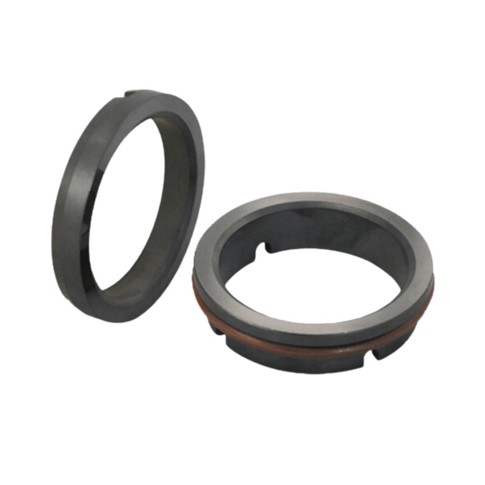

HILGE Novalobe mechanical seal

Application:

Shaft seal for Hilge Novalobe pump.

Construction:

  • The rotating part is driven by a pin
  • The seat is equipped with O-ring and three slots holding it in position
  • Including O-ring that acts as secondary seal around the shaft
  • Is not directional

Technical specifications

Quality:

  • Gaskets in Viton
  • The slide ring is in silicon
  • The seat is made of silicon
Product number Shaft dia.
mm
Rotating part
material
Stationary part
material
Elastomer
type
Base unit
03452890457V
45,0
Sic
Sic
Viton
PCS
