IBEX mechanical seal

Application:

Shaft seal for IBEX pumps.

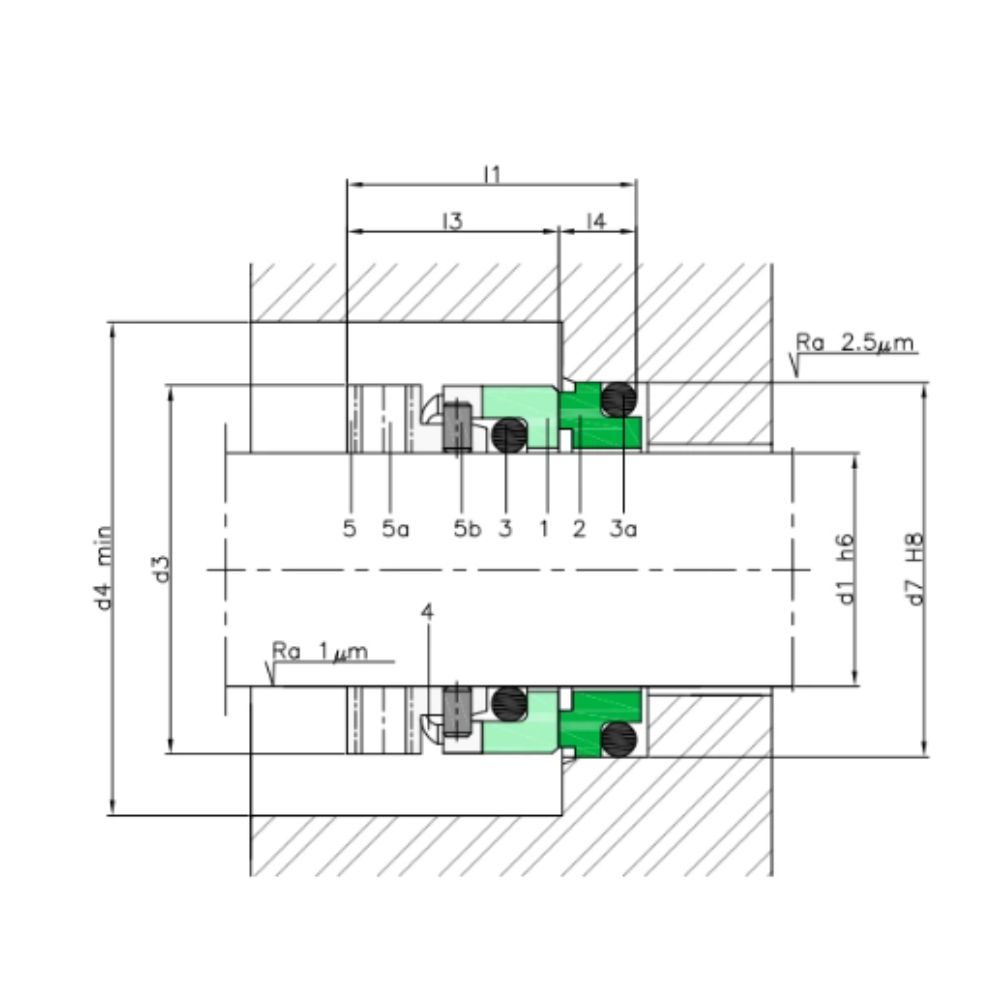

Construction:

  • Shaft seal with wave spring
  • The rotating part is held on shaft with three screws
  • The seat is equipped with O-ring holding it in position
  • Provided with an O-ring that acts as secondary seal around the shaft
  • Is not directional
  • The compression spring is external



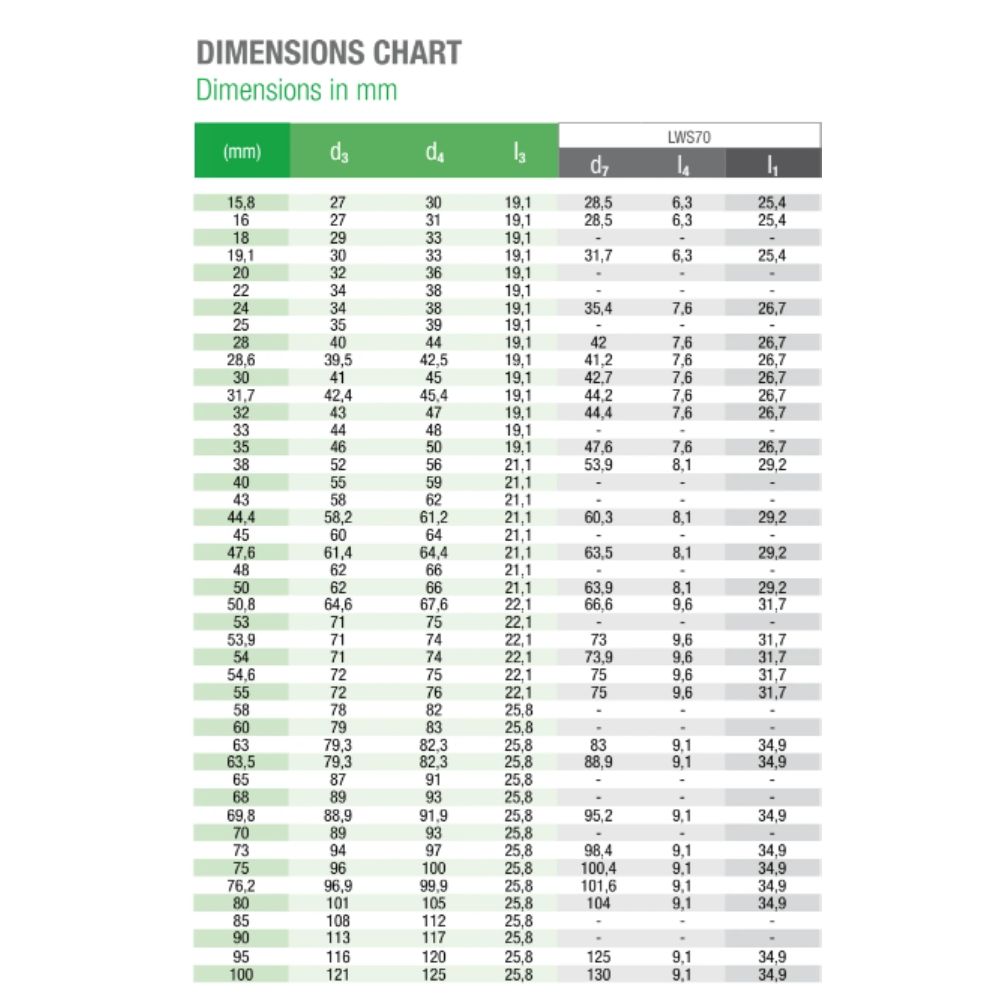

Technical specifications

Quality:

  • Spring in stainless steel
  • Gaskets in either nitrile or EPDM
  • The slide ring is in stainless steel or TC
  • The seat is made of carbon or TC
Product number Shaft dia.
mm
Rotating part
material
Stationary part
material
Elastomer
type
Base unit
03452800241E
24,0
Stainless
Kul
EPDM
PCS
03452800241V
24,0
Stainless
Kul
Viton
PCS
03452800281E
28,0
Stainless
Kul
EPDM
PCS
03452800281N
28,0
Stainless
Kul
NBR
PCS
03452800289E
28,0
Tc
Tc
EPDM
PCS
03452800289N
28,0
Tc
Tc
NBR
PCS
03452800301E
30,0
Stainless
Kul
EPDM
PCS
03452800301N
30,0
Stainless
Kul
NBR
PCS
03452800307E
30,0
Sic
Sic
EPDM
PCS
03452800309E
30,0
Tc
Tc
EPDM
PCS
03452800309N
30,0
Tc
Tc
NBR
PCS
Product number Shaft dia.
mm
Rotating part
material
Stationary part
material
Elastomer
type
Base unit
03452800321E
32,0
Stainless
Kul
EPDM
PCS
03452800351E
35,0
Stainless
Kul
EPDM
PCS
03452800351N
35,0
Stainless
Kul
NBR
PCS
03452800357V
35,0
Sic
Sic
Viton
PCS
03452800359E
35,0
Tc
Tc
EPDM
PCS
03452800359N
35,0
Tc
Tc
NBR
PCS
03452800381E
38,0
Stainless
Kul
EPDM
PCS
03452800381N
38,0
Stainless
Kul
NBR
PCS
03452800389E
38,0
Tc
Tc
EPDM
PCS
03452800389N
38,0
Tc
Tc
NBR
PCS
Product number Shaft dia.
mm
Rotating part
material
Stationary part
material
Elastomer
type
Base unit
03452800501E
50,0
Stainless
Kul
EPDM
PCS
03452800501N
50,0
Stainless
Kul
NBR
PCS
03452800507E
50,0
Sic
Sic
EPDM
PCS
03452800509E
50,0
Tc
Tc
EPDM
PCS
03452800509N
50,0
Tc
Tc
NBR
PCS
03452800511N
50,8
Kul
Stainless
Nitril
PCS
03452800551V
55,0
Kul
Stainless
Viton
PCS
