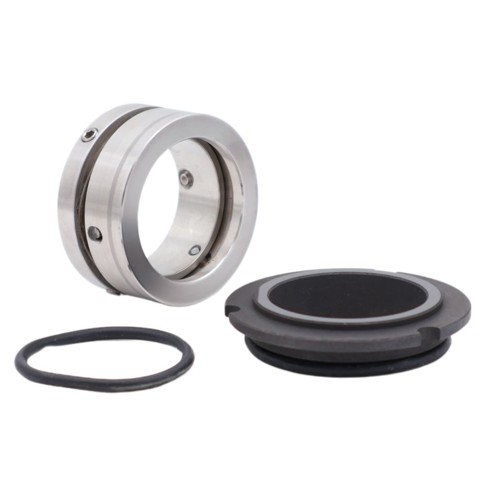

SSP SR mechanical seal

Application:

Mechanical seal for SSP pumper, SR1, SR2, SR3, SR4, SR5 & SR6.

Construction:

  • Mechanical seal with wave spring
  • The rotating part is held on shaft with three screws
  • The seat is equipped with three tracks holding it in position
  • Provided with an O-ring that acts as secondary seal around the shaft
  • Is not directional
  • The compression spring is external

Technical specifications

Quality:

  • Spring in stainless steel
  • Gaskets in either nitrile or EPDM
  • The slide ring is in stainless steel or tungsten
  • The seat is made of carbon or tungsten
Product number Shaft dia.
mm
Rotating part
material
Stationary part
material
Elastomer
type
Pump
type
Base unit
0345280W201E
20,0
Kul
Stainless
EPDM
SR1
PCS
0345280W201N
20,0
Kul
Stainless
NBR
SR1
PCS
0345280W209E
20,0
Tc
Tc
EPDM
SR1
PCS
0345280W209N
20,0
Tc
Tc
NBR
SR1
PCS
0345280W301E
30,0
Kul
Stainless
EPDM
SR2
PCS
0345280W301N
30,0
Kul
Stainless
NBR
SR2
PCS
0345280W301V
30,0
Kul
Stainless
Viton
SR2
PCS
0345280W309E
30,0
Tc
Tc
EPDM
SR2
PCS
0345280W309N
30,0
Tc
Tc
NBR
SR2
PCS
0345280W351E
35,0
Kul
Stainless
EPDM
SR3
PCS
0345280W351N
35,0
Kul
Stainless
NBR
SR3
PCS
Product number Shaft dia.
mm
Rotating part
material
Stationary part
material
Elastomer
type
Pump
type
Base unit
0345280W359E
35,0
Tc
Tc
EPDM
SR3
PCS
0345280W359N
35,0
Tc
Tc
NBR
SR3
PCS
0345280W451E
45,0
Kul
Stainless
EPDM
SR4
PCS
0345280W451N
45,0
Kul
Stainless
NBR
SR4
PCS
0345280W459E
45,0
Tc
Tc
EPDM
SR4
PCS
0345280W459N
45,0
Tc
Tc
NBR
SR4
PCS
0345280W551E
55,0
Kul
Stainless
EPDM
SR5
PCS
0345280W551N
55,0
Kul
Stainless
NBR
SR5
PCS
0345280W559E
55,0
Tc
Tc
EPDM
SR5
PCS
0345280W559N
55,0
Tc
Tc
NBR
SR5
PCS
Product number Shaft dia.
mm
Rotating part
material
Stationary part
material
Elastomer
type
Pump
type
Base unit
0345280W751E
75,0
Kul
Stainless
EPDM
SR6
PCS
0345280W751N
75,0
Kul
Stainless
NBR
SR6
PCS
0345280W759E
75,0
Tc
Tc
Viton
SR6
PCS
0345280W759N
75,0
Tc
Tc
NBR
SR6
PCS
