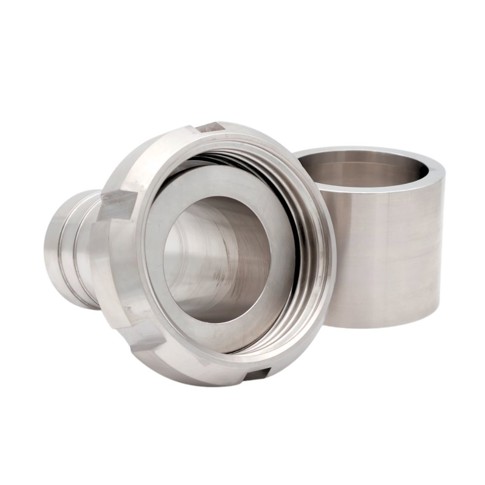

SMS union nut

Construction:

The fitting consists of a connection piece and a sleeve that are pressed together under great pressure and thus creates a strong and very smooth transition between the hose and the fitting.

  • Supplied with union nut according to SMS standard
  • Connections between 25.0 mm and up to 102.0 mm.

Quality:

The connection piece is made of stainless steel AISI 316 with a surface roughness inside of R 0.8 µ and provided with batch number. The sleeve is made of stainless steel AISI 304.

Product number Nominal dim.
mm.
Connecting SMS
nut
Ø ID hose
mm
Ø OD hose
mm
Length L
mm
Base unit
0464193102
19,0
25,0
19,0
31,0
71,5
PCS
0464253702
25,0
25,0
25,0
37,0
71,5
PCS
0464253706
25,0
38,0
25,0
37,0
71,5
PCS
0464253902
25,0
25,0
25,0
39,0
71,5
PCS
0464324406
32,0
38,0
32,0
44,0
71,5
PCS
0464384202
38,0
38,0
38,0
42,0
71,5
PCS
0464384902
38,0
38,0
38,0
49,0
71,5
PCS
0464384906
38,0
51,0
38,0
49,0
71,5
PCS
0464385102
38,0
38,0
38,0
51,0
71,5
PCS
0464385106
38,0
51,0
38,0
51,0
71,5
PCS
0464385302
38,0
38,0
38,0
53,0
71,5
PCS
Product number Nominal dim.
mm.
Connecting SMS
nut
Ø ID hose
mm
Ø OD hose
mm
Length L
mm
Base unit
0464385306
38,0
51,0
38,0
53,0
71,5
PCS
0464385602
38,0
38,0
38,0
56,0
71,5
PCS
0464385606
38,0
51,0
38,0
56,0
71,5
PCS
0464516402
51,0
51,0
51,0
64,0
87,5
PCS
0464516406
51,0
63,5
51,0
64,0
80,5
PCS
0464516408
51,0
76,0
51,0
64,0
81,0
PCS
0464516602
51,0
51,0
51,0
66,0
87,5
PCS
0464516606
51,0
63,5
51,0
66,0
80,5
PCS
0464516608
51,0
76,0
51,0
66,0
81,0
PCS
0464517002
51,0
51,0
51,0
70,0
87,5
PCS
Product number Nominal dim.
mm.
Connecting SMS
nut
Ø ID hose
mm
Ø OD hose
mm
Length L
mm
Base unit
0464517006
51,0
63,5
51,0
70,0
80,5
PCS
0464517008
51,0
76,0
51,0
70,0
81,0
PCS
0464647502
63,5
63,5
63,5
75,0
104,0
PCS
0464647802
63,5
63,5
63,5
78,0
104,0
PCS
0464647806
63,5
76,0
63,5
78,0
100,0
PCS
0464648002
63,5
63,5
63,5
80,0
104,0
PCS
0464648802
63,5
76,0
63,5
88,0
104,0
PCS
0464768802
76,1
76,0
76,1
88,0
112,0
PCS
0464769202
76,1
76,0
76,1
92,0
112,0
PCS
0464769402
76,1
76,0
76,1
94,0
112,0
PCS
Product number Nominal dim.
mm.
Connecting SMS
nut
Ø ID hose
mm
Ø OD hose
mm
Length L
mm
Base unit
0464769902
76,1
76,0
76,1
101,0
112,0
PCS
0464991802
101,6
102,0
101,6
118,0
149,0
PCS
0464992002
101,6
102,0
101,6
120,0
149,0
PCS
