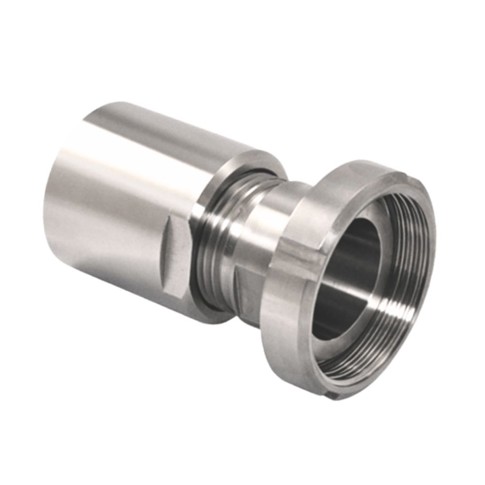

DIN union nut

Application:

AFT replaceable fitting with DIN connection for production hoses to be connected to equipment where the requirement is a very high level of hygiene. The fitting can be maintained when the hoses become defective and need to be replaced

Construction:

The fitting consists of a connection piece and a sleeve that are pressed together under great pressure and thus creates a strong and very smooth transition between the hose and the fitting.

  • Supplied with a union nut according to DIN standard
  • Connections between DIN 25 and up to DIN 80

Technical specifications

Quality:

The connection piece is made of stainless steel AISI 316 with a surface roughness inside of R 0.8 µ and provided with batch number. The sleeve is made of stainless steel AISI 304.

Product number Nominal dim.
mm.
Connection DIN
nut
Ø ID hose
mm
Ø OD hose
mm
Length L
mm
Base unit
0461253603
25,0
DIN 25
25,0
36,0
PCS
0461253608
25,0
DIN 40
25,0
36,0
94,8
PCS
0461253903
25,0
DIN 25
25,0
39,0
PCS
0461384903
38,0
DIN 40
38,0
49,0
PCS
0461384908
38,0
DIN 50
38,0
49,0
PCS
0461385103
38,0
DIN 40
38,0
51,0
PCS
0461385403
38,0
DIN 40
38,0
54,0
PCS
0461385603
38,0
DIN 40
38,0
56,0
PCS
0461516203
51,0
DIN 50
51,0
62,0
PCS
0461516403
51,0
DIN 50
51,0
64,0
PCS
0461516603
51,0
DIN 50
51,0
66,0
PCS
Product number Nominal dim.
mm.
Connection DIN
nut
Ø ID hose
mm
Ø OD hose
mm
Length L
mm
Base unit
0461516803
51,0
DIN 50
51,0
68,0
PCS
0461517103
51,0
DIN 50
51,0
71,0
PCS
0461647503
63,5
DIN 65
63,5
75,0
PCS
0461647803
63,5
DIN 65
63,5
78,0
PCS
0461648303
63,5
DIN 65
63,5
83,0
PCS
0461648703
63,5
DIN 65
63,5
87,0
PCS
0461648903
63,5
DIN 65
63,5
89,0
PCS
0461768803
76,1
DIN 80
76,0
88,0
PCS
0461769003
76,1
DIN 80
76,0
90,0
PCS
0461769203
76,1
DIN 80
76,0
92,0
PCS
Product number Nominal dim.
mm.
Connection DIN
nut
Ø ID hose
mm
Ø OD hose
mm
Length L
mm
Base unit
