ISO Clamp liner

Application:

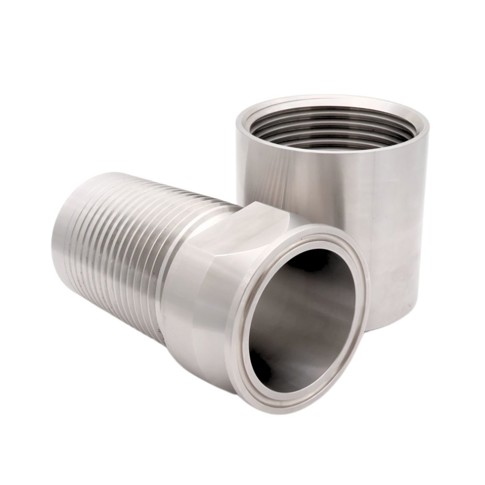

AFT replaceable fitting with CLAMP connection for production hoses to be connected to equipment where the requirement is a very high level of hygiene. The fitting can be maintained when the hoses become defective and need to be replaced.

Construction:

The fitting consists of a connection piece and a sleeve that are pressed together under great pressure and thus creates a strong and very smooth transition between the hose and the fitting.

  • Supplied for CLAMP connection
  • Connections between 38.0 mm and up to 76.0 mm.

Technical specifications

Quality:

The connection piece is made of stainless steel AISI 316 with a surface roughness inside of R 0.8 µ and provided with batch number. The sleeve is made of stainless steel AISI 304.

Product number Nominal dim.
mm.
Connection
Clamp liner
Ø ID hose
mm
Ø OD hose
mm
Length L
mm
Base unit
0461253404
25,0
25,0
25,0
34,0
84,0
PCS
0461253604
25,0
25,0
25,0
36,0
84,0
PCS
0461253904
25,0
25,0
25,0
39,0
84,0
PCS
0461384904
38,0
38,0
38,0
49,0
91,7
PCS
0461385104
38,0
38,0
38,0
51,0
91,7
PCS
0461385404
38,0
38,0
38,0
54,0
91,7
PCS
0461385604
38,0
38,0
38,0
54,0
91,7
PCS
0461516204
51,0
51,0
62,0
62,0
0
PCS
0461516404
51,0
51,0
64,0
64,0
0
PCS
0461516604
51,0
51,0
66,0
66,0
0
PCS
0461516804
51,0
51,0
68,0
68,0
0
PCS
Product number Nominal dim.
mm.
Connection
Clamp liner
Ø ID hose
mm
Ø OD hose
mm
Length L
mm
Base unit
0461517104
51,0
51,0
71,0
71,0
0
PCS
0461647504
63,5
63,5
75,0
75,0
0
PCS
0461647804
63,5
63,5
78,0
78,0
0
PCS
0461648304
63,5
63,5
83,0
83,0
0
PCS
0461648704
63,5
63,5
87,0
87,0
0
PCS
0461648904
63,5
63,5
89,0
89,0
0
PCS
0461768804
76,1
76,0
88,0
88,0
0
PCS
0461769004
76,1
76,0
90,0
90,0
0
PCS
0461769204
76,1
76,0
92,0
92,0
0
PCS
