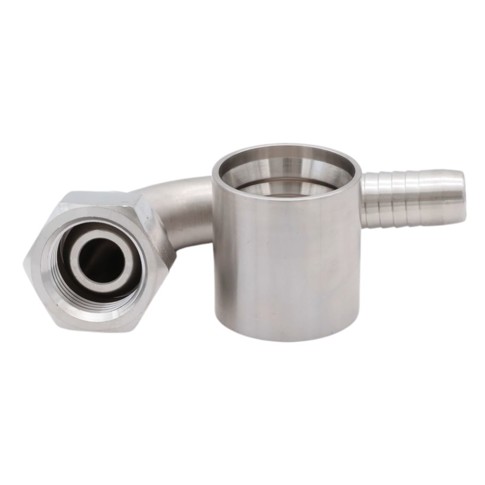

90° bend, BSP union nut, 60° cone

Application:

Suitable for chemistry tasks as well as media with high temperature requirements. Can also be used on filling equipment.

Construction:

The coupling consists of a connection piece and a sleeve that are pressed together under great pressure and thereby creates a strong and very smooth transition between the hose and coupling. Special design is possible.



Technical specifications

Quality:

Both connection piece and sleeve are made of stainless steel AISI 316.

Product number Nominal dim.
mm.
Connection
RG
Ø ID hose
mm.
Ø OD hose
mm.
Installation dim. L2
mm
Length L
mm.
Base unit
0468090617TS
6,0
1/4"
6,0
17,0
28,0
56,0
PCS
0468092031TS
20,0
3/4"
20,0
28,0
63,0
105,0
PCS
0468092540TS
25,0
1"
25,0
39,0
79,5
126,0
PCS
