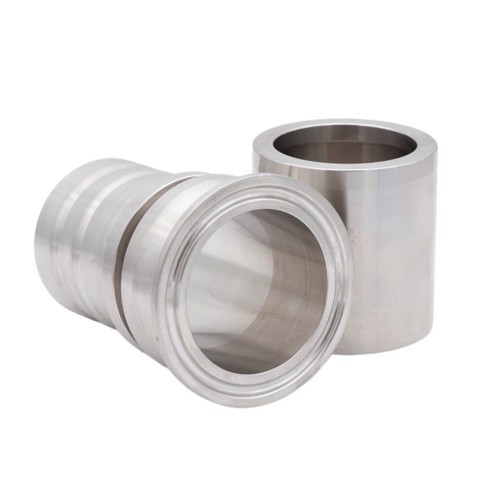

Press Coupling f. corrug. PTFE hose w. braid & silicone, ISO Clamp liner

Application:

Suitable for chemistry tasks as well as media with high temperature requirements. Can also be used on filling equipment.

Construction:

The coupling consists of a connection piece and a sleeve that are pressed together under great pressure and thereby creates a strong and very smooth transition between the hose and coupling. Special design is possible.



Technical specifications

Quality:

The connection piece is made of stainless steel AISI 316 and the sleeve is made of stainless steel AISI 304.

Product number Nominal dim.
mm.
Connection
Clamp liner
Ø ID hose
mm.
Ø OD hose
mm.
Length L
mm.
Base unit
0468241221TS
13,0
25,0
13,0
25,0
47
PCS
0468242031TS
20,0
25,0
20,0
31,0
54,6
PCS
0468242540TS
25,0
25,0
25,0
40,0
67,2
PCS
0468242541TS
25,0
51,0
25,0
40,0
66,3
PCS
0468242544TS
25,0
25,0
25,0
45,0
67,2
PCS
0468242545TS
25,0
51,0
25,0
45,0
67,2
PCS
0468243849TS
38,0
38,0
38,0
49,0
66,1
PCS
0468243850TS
38,0
51,0
38,0
49,0
64,8
PCS
