Press Coupling f. corrugated PTFE hose w. braid, Standpipe

Application:

Suitable for chemistry tasks as well as media with high temperature requirements. Can also be used on filling equipment.

Construction:

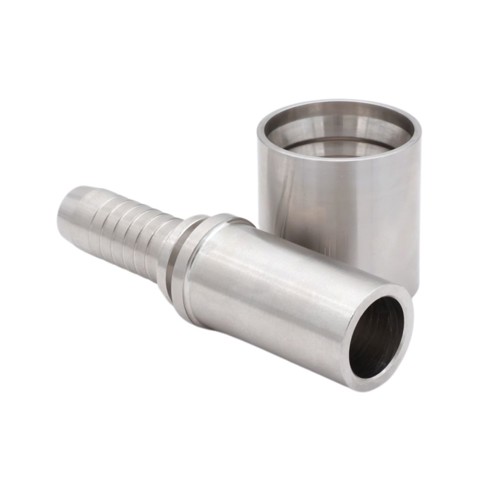

The coupling consists of a connection piece and a sleeve that are pressed together under great pressure and thereby creates a strong and very smooth transition between the hose and coupling. Special design is possible.



Technical specifications

Quality:

Both connection piece and sleeve are made of stainless steel AISI 316.

Product number Nominal dim.
mm.
Standpipe mm. Ø ID hose
mm.
Ø OD hose
mm.
Length L
mm.
Base unit
0467000612
6,0
6,0
6,0
12,0
56,0
PCS
0467000612B
6,0
8,0
6,0
12,0
56,0
PCS
0467000813
8,0
8,0
8,0
13,0
52
PCS
0467001018
10,0
10,0
10,0
18,0
60,0
PCS
0467001018B
10,0
12,0
10,0
18,0
61,0
PCS
0467001018D
10,0
15,0
10,0
18,0
61,0
PCS
0467001221
12,0
12,0
12,0
21,0
63,0
PCS
0467001221A
12,0
12,7
12,0
21,0
63,0
PCS
0467001221B
12,0
18,0
12,0
21,0
66,0
PCS
0467001221C
12,0
16,0
12,0
21,0
70,0
PCS
0467001221D
12,0
20,0
12,0
21,0
75,0
PCS
Product number Nominal dim.
mm.
Standpipe mm. Ø ID hose
mm.
Ø OD hose
mm.
Length L
mm.
Base unit
0467001625
16,0
16,0
16,0
25,0
70,0
PCS
0467001625A
16,0
18,0
16,0
25,0
70,0
PCS
0467002028
20,0
20,0
20,0
28,0
84,0
PCS
0467002028A
20,0
22,0
20,0
28,0
82,0
PCS
0467002028B
20,0
25,0
20,0
28,0
89,3
PCS
0467002535A
25,0
28,0
25,0
35,0
93,0
PCS
0467003242
32,0
35,0
32,0
42,0
109,0
PCS
