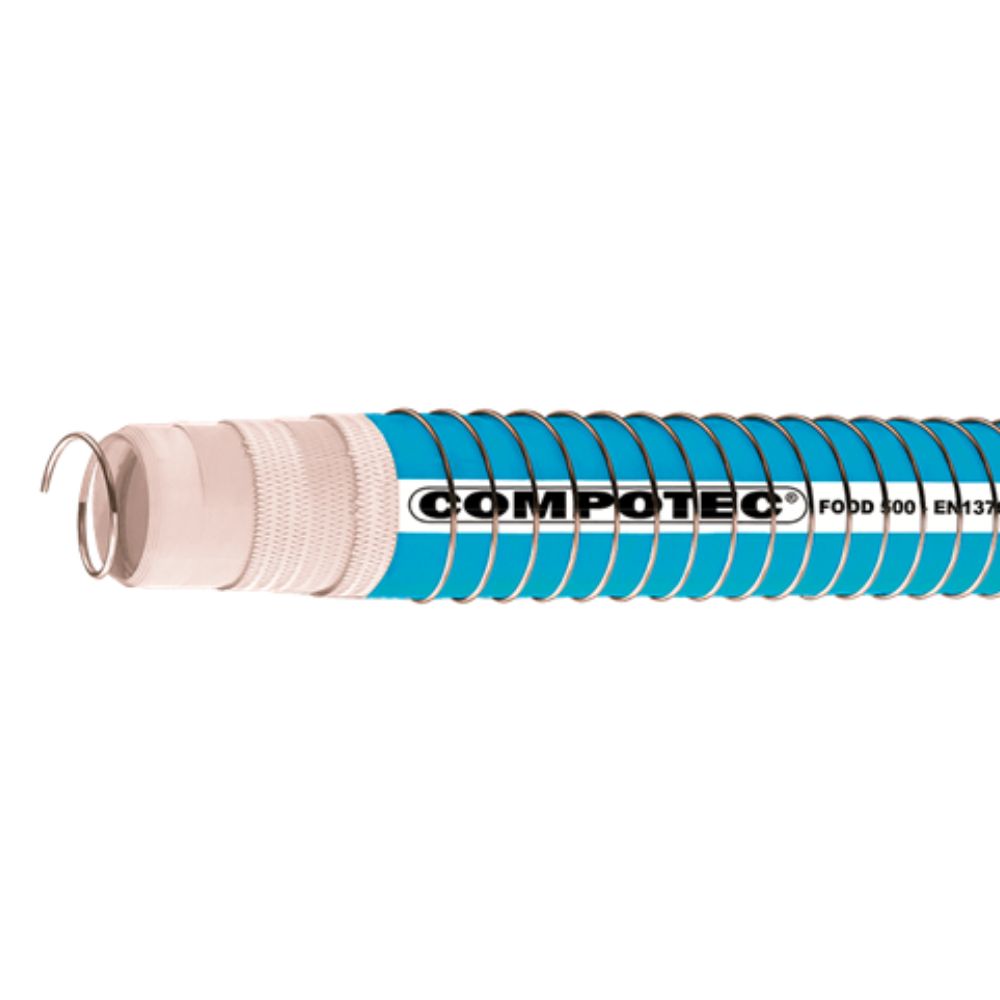

Food 500

Application:

Food 500 is a composite suction and pressure spiral hose for transporting liquid and powder. The hose is suitable for alcohol and oily products. The Food 500 hose can be used for applications such as transfer to railway and tankers, loading and unloading, storage tanks and for use in plants.

Construction:

Food 500 is made up of several layers of thermoplastic material around Ultra High Molecular Weight Polyethylene. The hose is reinforced with AISI 316 L stainless steel spiral both inside and outside, as well as weather-resistant and durable outer cover made of polyvinyl. Food 500 is resistant to UV, ozone, sunlight, and weather. The outer cover can also be delivered in Elastothane, a special PU coated material, which is extra resistant to UV, ozone, sunlight, weather and ensures superior temperature and wear properties. Food 500 can be supplied with a special antistatic black outer surface. All versions of the hose can be fitted with a large selection of accessories such as sanitary fittings DIN, SMS, RYT or Tri-clamp.

  • High Density PLT tubular extruded film which ensures a gas-tight construction
  • Electrical continuity is achieved by means of the two wires in the end brackets
  • Antistatic R <106 Ω. (EN ISO 8031)
  • Ozone, wear, and weather resistant

Technical specifications

Temperature:

The temperature ranges from -40°C to +100°C. The hose can be cleaned with steam or various chemicals.

Pressure:

All pressures are stated at the temperature +20°C.



Standards:

EC 1935/2004 GMP, FDA 177.1520, EU Regulation No. 10/2011, D.M. 21/03/73, EN ISO 8031, EN ISO 1402, EN ISO 7233 method B, and Directive 94/9/EC “ATEX”, as well as test report cerisie n. 471-ABC bis/ 2013 - Phthalate free.

Safety factor:

Safety factor: ≥ 5 times working pressure.

Approvals

Product number Inner dia.
mm
Bending radius
mm
Working pressure
bar
Burst pressure
bar
Vacuum
bar
Color Metres per
coil
Net weight
kg
Base unit
0405300200
20,0
75,0
16,0
80,0
0,75
Blue
40,0
0,850
MTR
0405300250
25,0
100,0
16,0
80,0
0,75
Blue
40,0
0,980
MTR
0405300320
32,0
125,0
16,0
80,0
0,75
Blue
40,0
1,310
MTR
0405300400
40,0
140,0
16,0
80,0
0,75
Blue
40,0
1,530
MTR
0405300500
50,0
180,0
16,0
80,0
0,75
Blue
40,0
2,210
MTR
0405300650
65,0
220,0
16,0
80,0
0,75
Blue
40,0
3,220
MTR
0405300750
75,0
280,0
16,0
80,0
0,75
Blue
40,0
3,730
MTR
0405300800
80,0
280,0
16,0
80,0
0,75
Blue
40,0
3,730
MTR
0405301000
100,0
400,0
16,0
80,0
0,75
Blue
40,0
5,420
MTR
