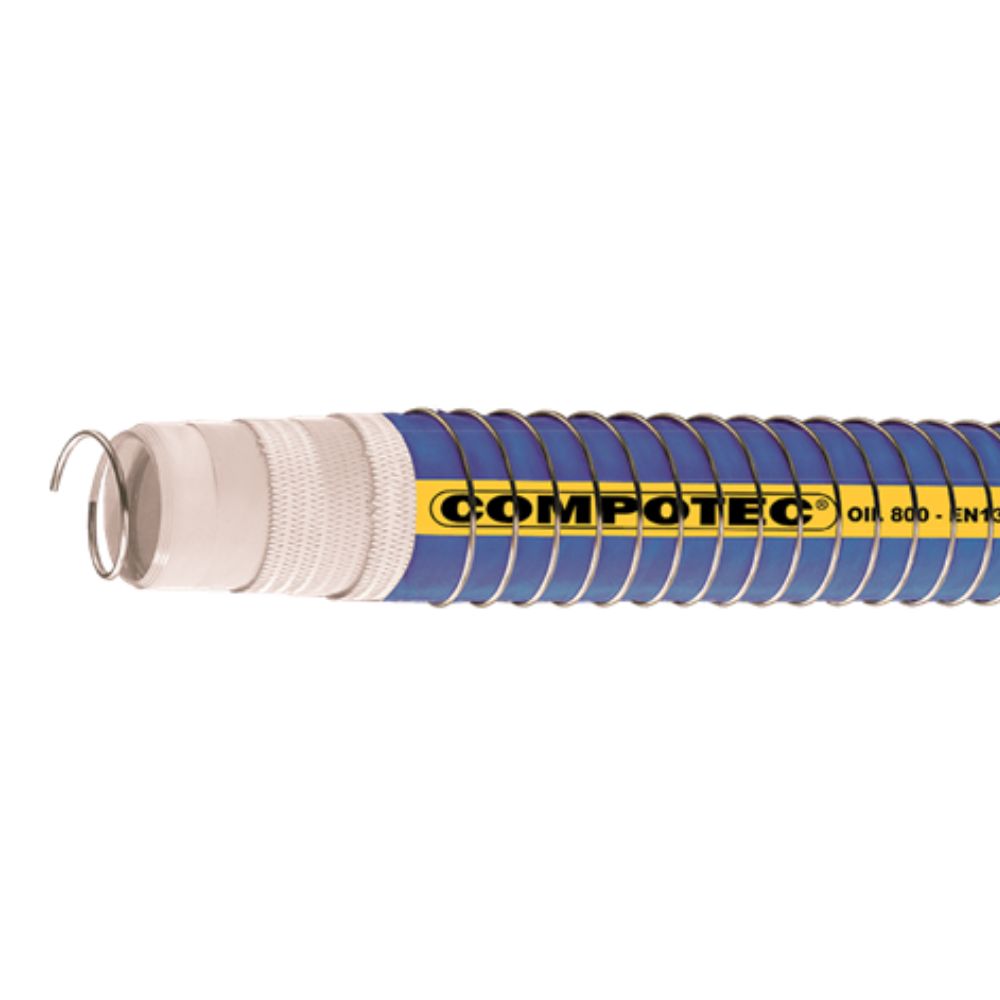

Oil SD

Application:

Oil SD is a composite suction and pressure spiral hose for transporting liquid. The hose is suitable for transport of e.g. various fuel, oils, petrol, diesel, and lubricating oils, kerosene as well as aromatic substances under suction or pressure. The Oil SD hose can be used for applications such as transfer to railway tankers and tank ships, loading and unloading, storage tanks and for use in plants.

Construction:

Oil SD is made up of several layers of thermoplastic material around Ultra High Molecular Weight Polyethylene. The hose is reinforced with AISI 316 L stainless steel spiral both inside and outside, as well as weather-resistant and durable outer cover made of polyvinyl. Oil SD is resistant to UV, ozone, sunlight, and weather. The outer cover can also be delivered in Elastothane, a special PU coated material, which is extra resistant to UV, ozone, sunlight, weather and ensures superior temperature and wear properties.

Oil SD can be delivered in a black antistatic version (Directive 94/9/EC “ATEX”). All versions of the hose can be fitted with a large selection of couplings. The hose can be delivered in a Firetec version with ADR self-extinguishing cover.

  • Antistatic R <106Ω (EN ISO 8031)
  • Ozone, UV, wear, and weather resistant

Technical specifications

Temperature:

The temperature ranges from -30°C to+80°C.

Pressure:

All pressures are stated at the temperature +20°C.

Standards:

The hose complies with PED Directive (97/23/CE), EN ISO 1746, EN ISO 1402 (BS 5173 section 102.10:1990), EN ISO 8031:2009 - 4.7.

Safety factor:

Safety factor: ≥ 5 times working pressure.

Approvals

Product number Inner dia.
mm
Bending radius
mm.
Working pressure
bar
Burst pressure
bar
Vacuum
bar
Color Metres per
coil
Net weight
kg.
Base unit
0405600400
40,0
100,0
10,0
50,0
0,75
Blue
40,0
1,230
MTR
0405600500
50,0
150,0
10,0
50,0
0,75
Blue
40,0
1,660
MTR
0405600650
65,0
200,0
10,0
50,0
0,75
Blue
40,0
2,100
MTR
0405600750
75,0
250,0
10,0
50,0
0,75
Blue
40,0
2,530
MTR
0405600800
80,0
250,0
10,0
50,0
0,75
Blue
40,0
2,530
MTR
0405601000
100,0
300,0
10,0
50,0
0,75
Blue
40,0
4,100
MTR
