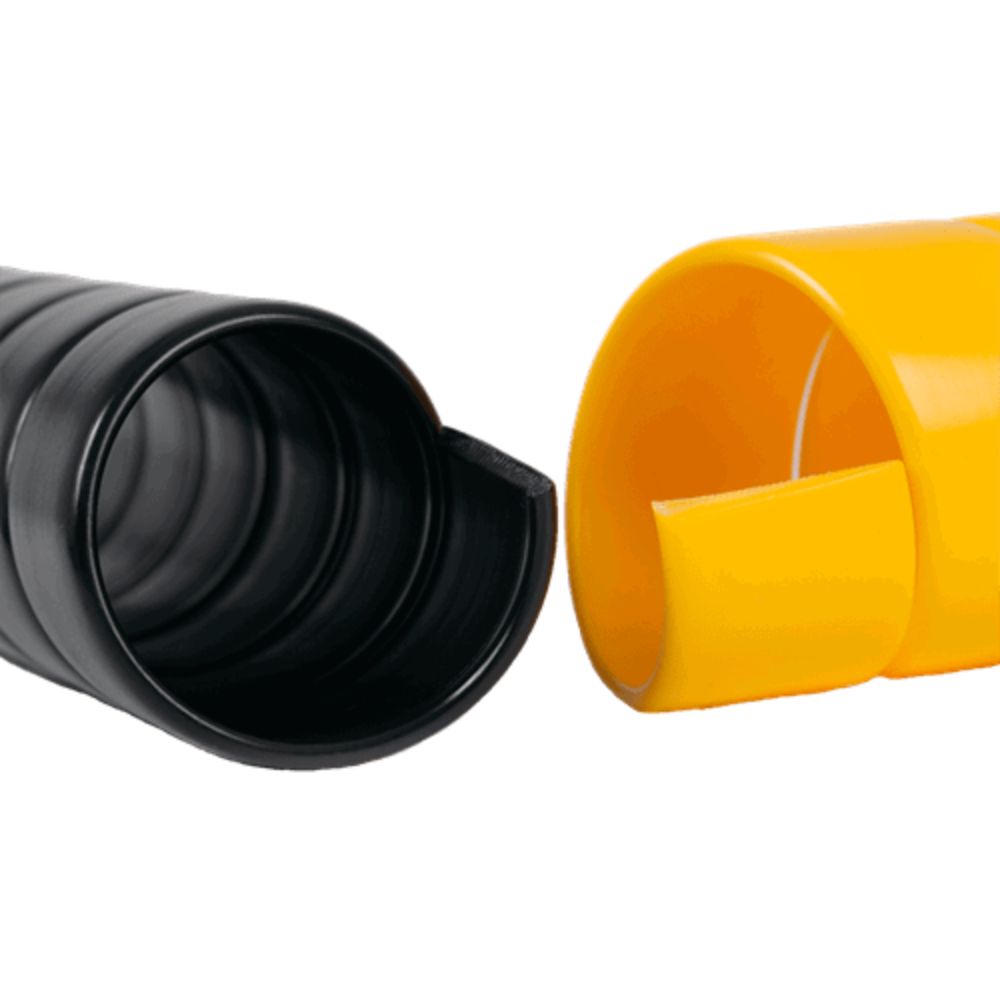

Hose guard

Application:

Hose guard that provides extra protection for your hoses against wear, impact, and weather conditions. Typically used where hoses lie on rough surfaces.

Construction:

The hose guard is produced by extrusion from high density polyethylene. This ensures superior breaking strength and natural round spiral edges. By using the hose guard, the durability is significantly increased, breaking of hose is reduced and safety is improved, especially the yellow colour increases the visibility.
The hose guard is available in yellow or black, and on request other colours such as blue, green, white, purple, and red are available.

  • Resistant to acid, oil, and solvents
  • One size covers several hose dimensions
  • Contains antistatic additives
  • Withstands both frost and heat
  • Easy to use
  • Reusable
  • UV tolerant

Technical specifications

Temperatures:

The temperature ranges from -50°C to +80°C.

Product number Nominal dim.
mm.
Min. dia
mm
Max. dia.
mm
Color Weight /mtr.
kg.
Base unit
0450010200
20,0
16,0
22,0
Yellow
0,11
MTR
0450010250
25,0
20,0
27,0
Yellow
0,17
MTR
0450010320
32,0
27,0
36,0
Yellow
0,23
MTR
0450010400
40,0
34,0
44,0
Yellow
0,29
MTR
0450010500
50,0
43,0
55,0
Yellow
0,41
MTR
0450010630
63,0
55,0
67,0
Yellow
0,55
MTR
0450010750
75,0
66,0
80,0
Yellow
0,88
MTR
0450010900
90,0
80,0
98,0
Yellow
1,20
MTR
0450010900S
90,0
80,0
98,0
Black
1,20
MTR
0450011100
110,0
99,0
115,0
Yellow
1,61
MTR
0450011100S
110,0
99,0
115,0
Black
1,61
MTR
0450011250
125,0
113,0
130,0
Yellow
2,05
MTR
0450011400
140,0
125,0
155,0
Yellow
2,38
MTR
