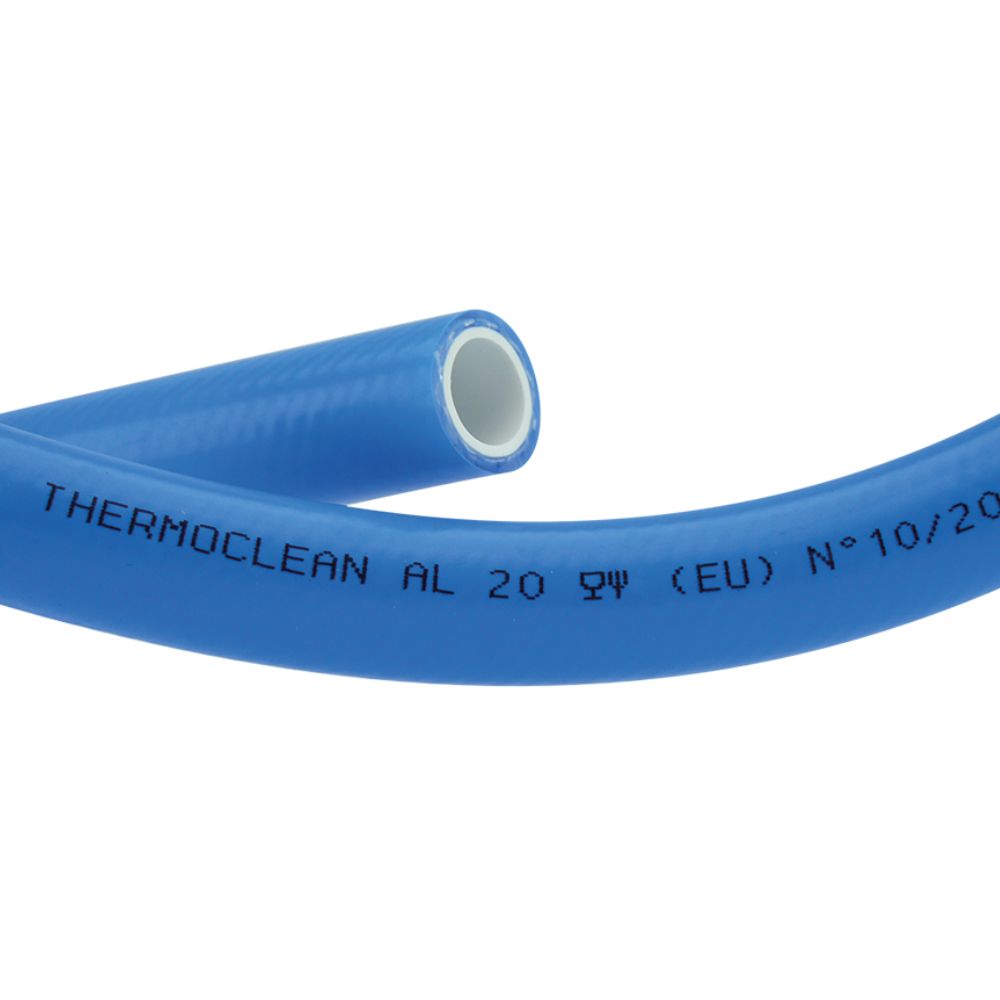

Thermoclean AL20

Application:

Thermoclean AL 20 is a hot water hose for industrial cleaning. The hose can be used for non-fatty foods.

Construction:

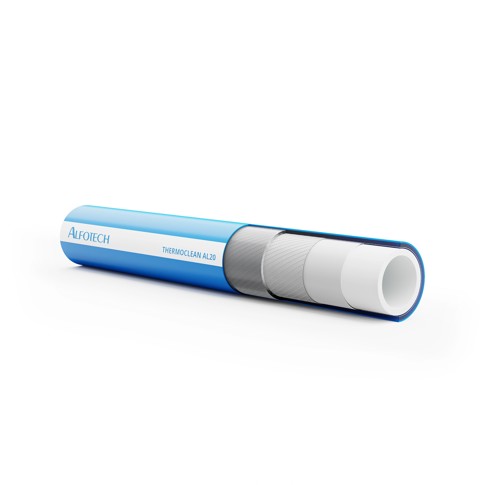

Thermoclean AL 20 is designed in 5 layers with embedded polyester reinforcement. The inner and outer layers are made of PVC. The hose is blue on the outside and white on the inside.  The 5 layers of PVC give the hose excellent handling properties.

  • Resistant to detergents and disinfectants
  • Safe and stable hose

Technical specifications

Temperature:

The temperature ranges from -15°C to +70°C.

Pressure:

All pressures are stated at the temperature +20°C.

Standards:

The hose complies with EC 1935/2004 and 2023/2006/EC (GMP), EU Regulation 10/2011/EU, as well as simulator A, B, and C. The manufacture is free of phthalates.

Safety factor:

Safety factor: ≥ 3 times working pressure.

Approvals

Product number Inner dia.
mm
Outer dia.
mm
Bending radius
mm
Working pressure
bar
Work. Pressure at +70 °C
bar
Burst pressure
bar
Burst pressure at + 70°C.
bar
Color Metres per
coil
Net weight
kg
Base unit
0413000130
12,0
20,0
54,0
33,0
20,0
100,0
60,0
Blue
25,0
0,236
MTR
0413000160
16,0
24,0
72,0
33,0
20,0
100,0
60,0
Blue
25,0
0,311
MTR
0413000200
19,0
28,0
86,0
33,0
20,0
100,0
60,0
Blue
25,0
0,409
MTR
