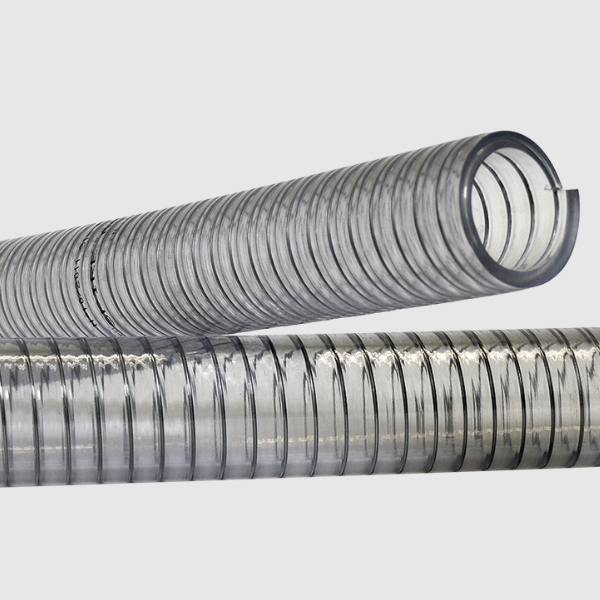

Plutone Bio

Application:

Plutone Bio is a suction and pressure hose for transporting non-fatty foods, chemical products, liquids, or powders. The hose can be used for transporting alcohol up to 50% at max. +40°C.

Construction:

Plutone Bio is made of PVC with embedded galvanized steel spiral. The smooth inner wall reduces flow loss and makes it easy to clean the hose. Plutone Bio is transparent, so circulation of the medium is clearly visible.

  • Galvanized steel spiral
  • UV resistant

Technical specifications

Temperature:

The temperature ranges from -15°C to +60°C.

Pressure:

All pressures are stated at the temperature +20°C.

Standards:

The hose complies with EC 1935/2004 and 2023/2006/EC (GMP), EU Regulation 10/2011/EU, as well as simulator A, B, C, and D1. The manufacture is free of phthalates.

Safety factor:

Safety factor: ≥ 3 times working pressure.

Approvals

Product number Inner dia.
mm
Outer dia.
mm
Bending radius
mm
Working pressure
bar
Burst pressure
bar
Vacuum
bar
Color Metres per
coil
Net weight
kg
Base unit
0408000080
8,0
14,2
14,0
12,0
36,0
0,9
Transparent
60,0
0,150
MTR
0408000100
10,0
16,0
18,0
12,0
36,0
0,9
Transparent
60,0
0,154
MTR
0408000130
12,0
18,0
23,0
11,5
34,5
0,9
Transparent
60,0
0,186
MTR
0408000160
16,0
22,4
30,0
10,5
31,5
0,9
Transparent
60,0
0,250
MTR
0408000200
20,0
27,0
34,0
10,0
30,0
0,9
Transparent
60,0
0,392
MTR
0408000250
25,0
33,0
42,0
9,5
28,5
0,9
Transparent
60,0
0,506
MTR
0408000320
32,0
40,4
53,0
9,0
27,0
0,9
Transparent
60,0
0,640
MTR
0408000380
38,0
47,0
63,0
7,5
22,5
0,9
Transparent
30,0
0,776
MTR
0408000400
40,0
49,0
66,0
7,5
22,5
0,9
Transparent
30,0
0,920
MTR
0408000510
50,0
60,0
82,0
6,0
18,0
0,9
Transparent
30,0
1,260
MTR
0408000600
60,0
71,8
130,0
5,5
16,5
0,9
Transparent
30,0
1,735
MTR
0408000640
63,0
74,8
140,0
5,0
16,0
0,9
Transparent
30,0
1,756
MTR
0408000760
76,0
88,2
200,0
4,0
12,0
0,9
Transparent
30,0
2,230
MTR
0408001020
102,0
115,0
300,0
3,0
9,0
0,9
Transparent
20,0
3,540
MTR
