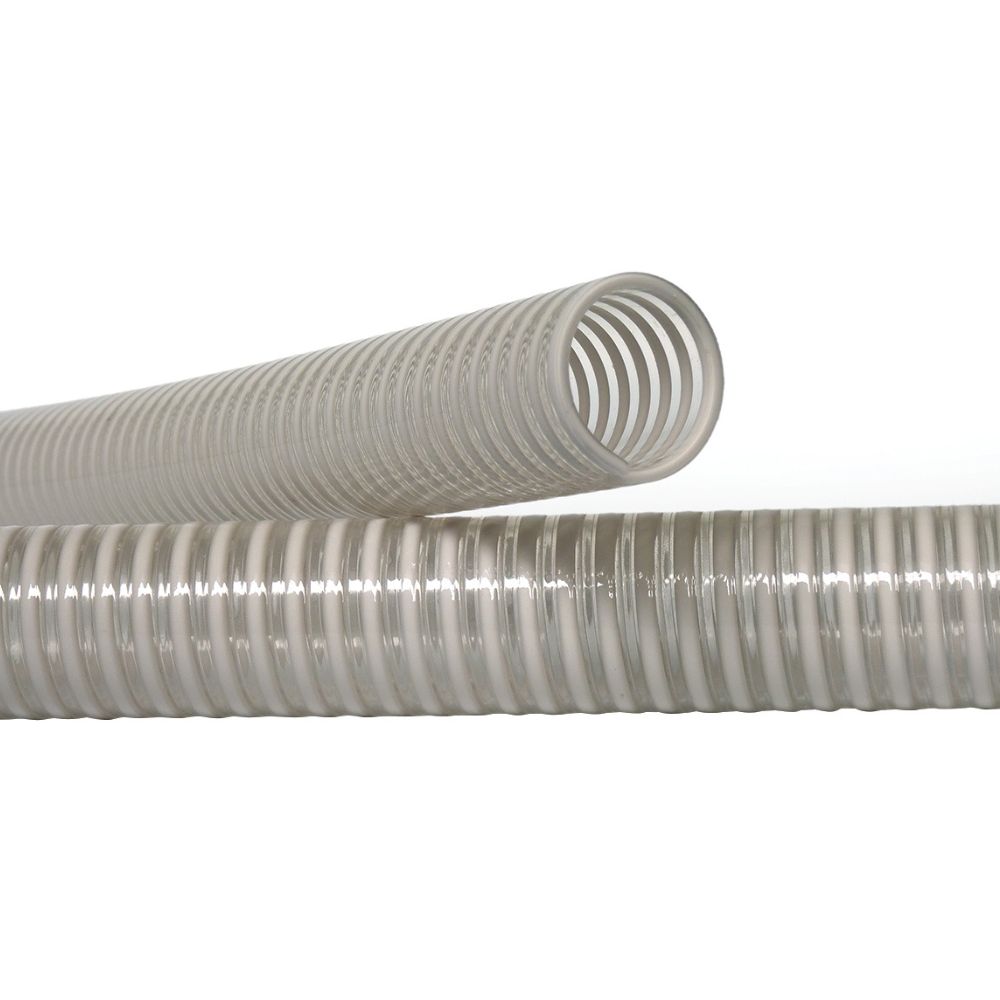

Spirabel S.N.T.-S

Application:

PVC hose approved for transporting non-fatty foods, liquids as well as granulates. The hose can also be used up to 50% alcohol at max. 60°C.

Construction:

Spirabel S.N.T.-S is internally and externally made of PVC. The hose is partially transparent with a white spiral and smooth both inside and out. Reinforced with embedded shockproof PVC spiral.

Download data sheet Go to hose assembly

Technical specifications

Temperature:

The temperature ranges from -15°C to +60°C.

Pressure

All pressures are stated at the temperature +20°C.

Standards:

The hose complies with EC 1935/2004 and 2023/2006/EC (GMP), EU Regulation 10/2011/EU, as well as simulator A, B, C, and D1. The manufacture is free of phthalates.

Safety factor:

Safety factor: ≥ 3 times working pressure.

Approvals

Product number	Inner dia. mm	Outer dia. mm	Bending radius mm.	Working pressure bar	Burst pressure bar	Vacuum bar	Color	Metres per coil	Net weight kg.	Base unit
0405000200	20,0	25,2	60,0	7,0	21,0	0,8	Transparent	50,0	0,242	MTR
0405000250	25,0	30,4	75,0	7,0	21,0	0,8	Transparent	50,0	0,300	MTR
0405000320	32,0	37,6	95,0	6,0	18,0	0,8	Transparent	50,0	0,387	MTR
0405000380	38,0	44,0	115,0	6,0	18,0	0,8	Transparent	50,0	0,504	MTR
0405000400	40,0	46,0	120,0	6,0	18,0	0,8	Transparent	25,0	0,523	MTR
0405000500	50,0	56,6	150,0	5,0	15,0	0,8	Transparent	25,0	0,736	MTR
0405000640	63,0	69,6	190,0	5,0	15,0	0,8	Transparent	25,0	0,960	MTR
0405000750	75,0	84,6	300,0	4,0	12,0	0,7	Transparent	25,0	1,200	MTR
0405000900	90,0	102,2	360,0	3,0	9,0	0,7	Transparent	25,0	1,650	MTR
0405001000	100,0	112,2	500,0	3,0	9,0	0,7	Transparent	25,0	1,970	MTR
0405001100	110,0	122,2	550,0	3,0	9,0	0,6	Transparent	25,0	2,310	MTR
