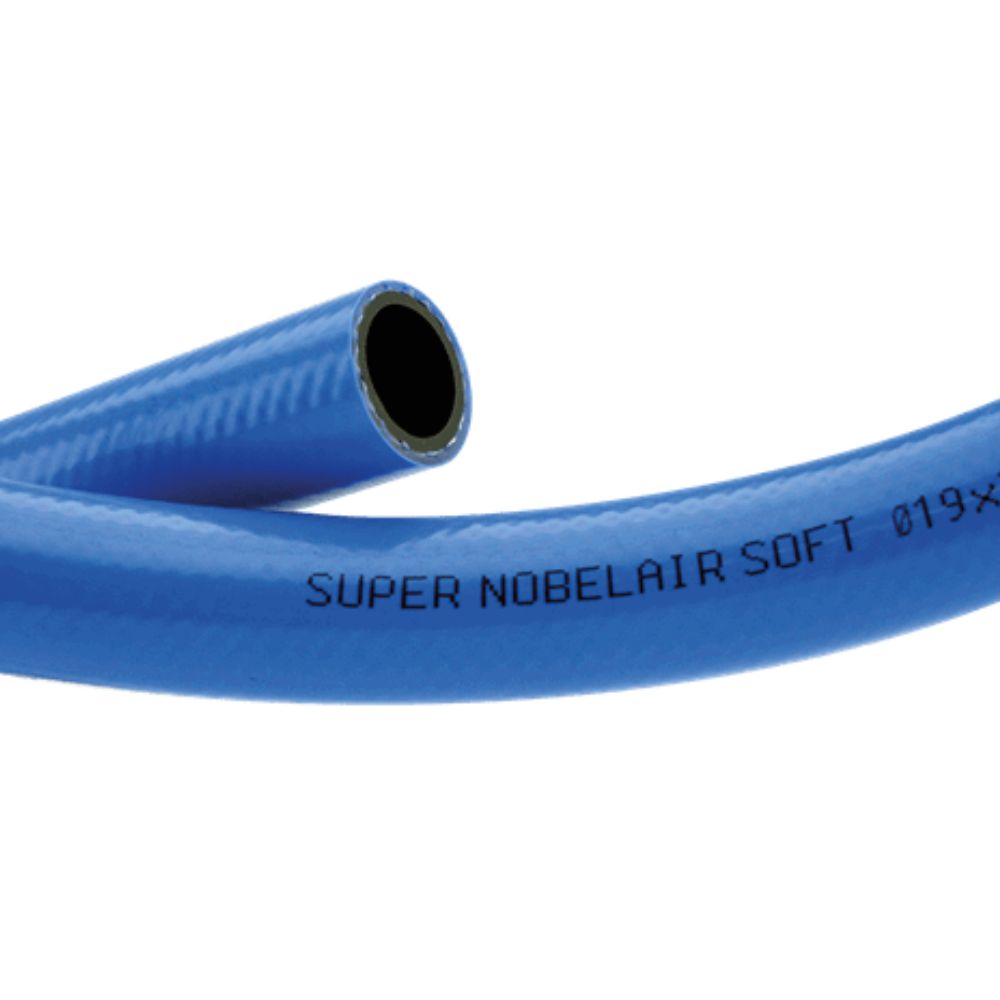

Super Nobelair Soft

Application:

Compressed air hose suitable for most types of compressed air installations. The Super Nobelair Soft hose can be used to advantage for pneumatic tools.

Construction:

Super Nobelair Soft is designed in 3 layers. The inner and outer layers are made of extra flexible PVC and between the 2 layers the hose is reinforced with a resistant polyester. The hose is black on the inside and blue on the outside. The Super Nobelair Soft hose can withstand high pressure with minimal change, as well as frequent pressure pulses. The PVC composition eliminates any risks of cracking and thereby achieves a long service life and improved safety.

  • Flexible and light hose
  • Withstands high pressure
  • Long service life

Technical specifications

Temperature:

The temperature ranges from -20°C to +60°C.

Pressure:

All pressures are stated at the temperature +20°C.

Standards:

The hose is certified by the TÜV organisation. The manufacture is free of phthalates.

Safety factor:

Safety factor: ≥ 4 times working pressure.

Approvals

Product number Inner dia.
mm
Outer dia.
mm
Bending radius
mm.
Working pressure
bar
Burst pressure
bar
Color Metres per
coil
Net weight
kg.
Base unit
0406100060
6,3
11,0
23,0
15,0
60,0
Blue
50,0
0,081
MTR
0406100080
8,0
13,0
28,0
15,0
60,0
Blue
50,0
0,106
MTR
0406100100
10,0
15,5
35,0
15,0
60,0
Blue
50,0
0,141
MTR
0406100130
12,7
19,0
45,0
15,0
60,0
Blue
50,0
0,200
MTR
0406100160
16,0
23,0
56,0
15,0
60,0
Blue
50,0
0,265
MTR
0406100200
19,0
26,5
73,0
15,0
60,0
Blue
50,0
0,337
MTR
