Tress-Nobel

Application:

The Tress-Nobel hose is suitable for compressed air installations and spray systems.

Construction:

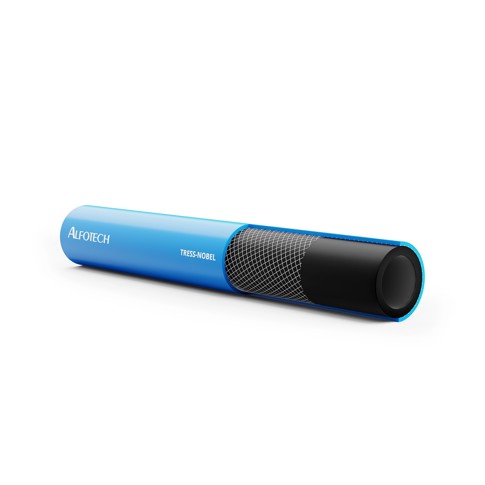

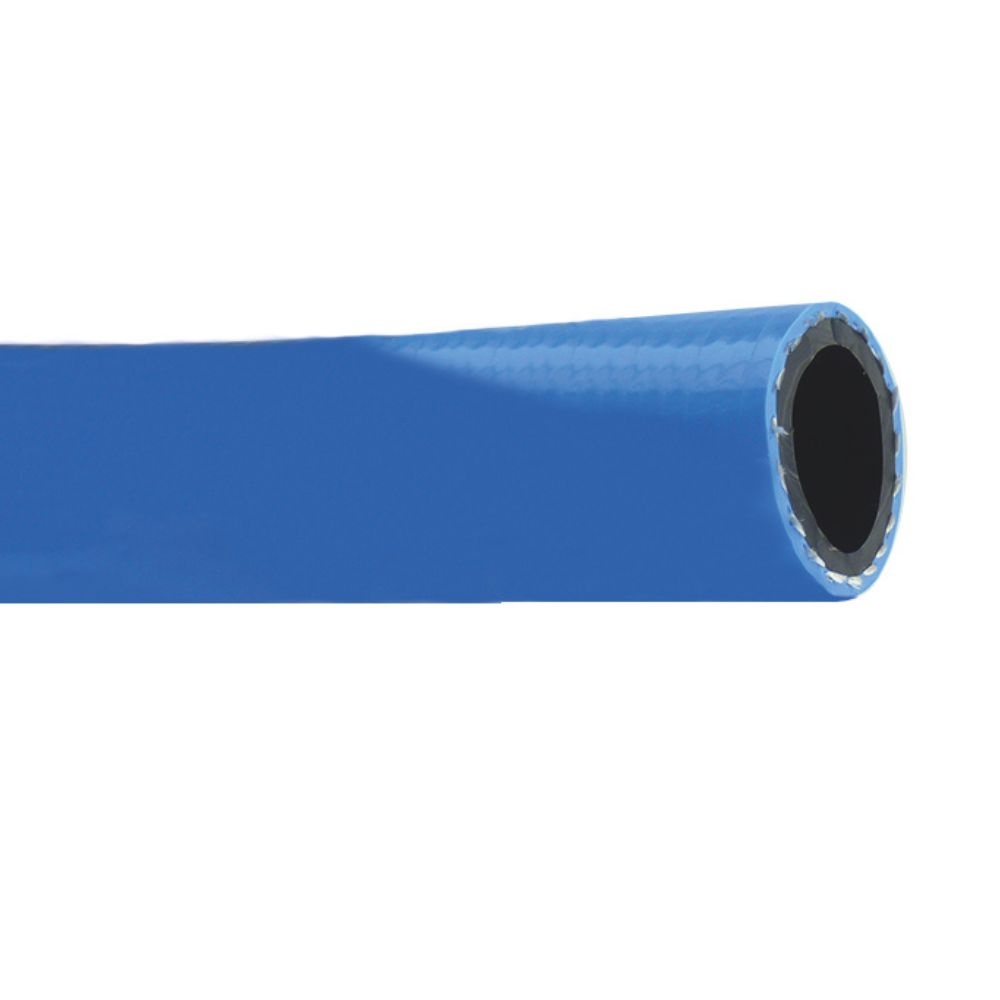

The Tress-Nobel hose is made in three layers. The inner and outer layer is made of flexible PVC and between the 2 PVC layers the hose is reinforced with embedded polyester reinforcement. The hose is blue on the outside and black on the inside. The Tress-Nobel hose can withstand pressures with minimal change due to the balanced reinforcement. The PVC composition eliminates any risks of cracking and thereby achieves a long service life and improved safety.

  • Can withstand pressure with minimal change
  • Long service life and superior safety
  • Excellent pressure strength

Technical specifications

Temperature:

The temperature ranges from -15°C to +60°C.

Pressure:

All pressures are stated at the temperature +20°C.



Standards:

The manufacture is free of phthalates.

Safety factor:

Safety factor: ≥ 3 times working pressure.

Approvals

Product number Inner dia.
mm
Outer dia.
mm
Bending radius
mm.
Working pressure
bar
Burst pressure
bar
Color Metres per
coil
Net weight
kg.
Base unit
0403780060
6,3
12,5
22,0
40,0
120,0
Blue
50,0
0,112
MTR
0403780080
8,0
14,5
28,0
40,0
120,0
Blue
50,0
0,151
MTR
0403780100
10,0
17,0
35,0
40,0
120,0
Blue
50,0
0,195
MTR
0403780130
12,0
20,0
42,0
40,0
120,0
Blue
100,0
0,264
MTR
0403780160
16,0
24,0
56,0
40,0
115,0
Blue
50,0
0,331
MTR
0403780200
19,0
28,0
73,0
40,0
115,0
Blue
50,0
0,437
MTR
