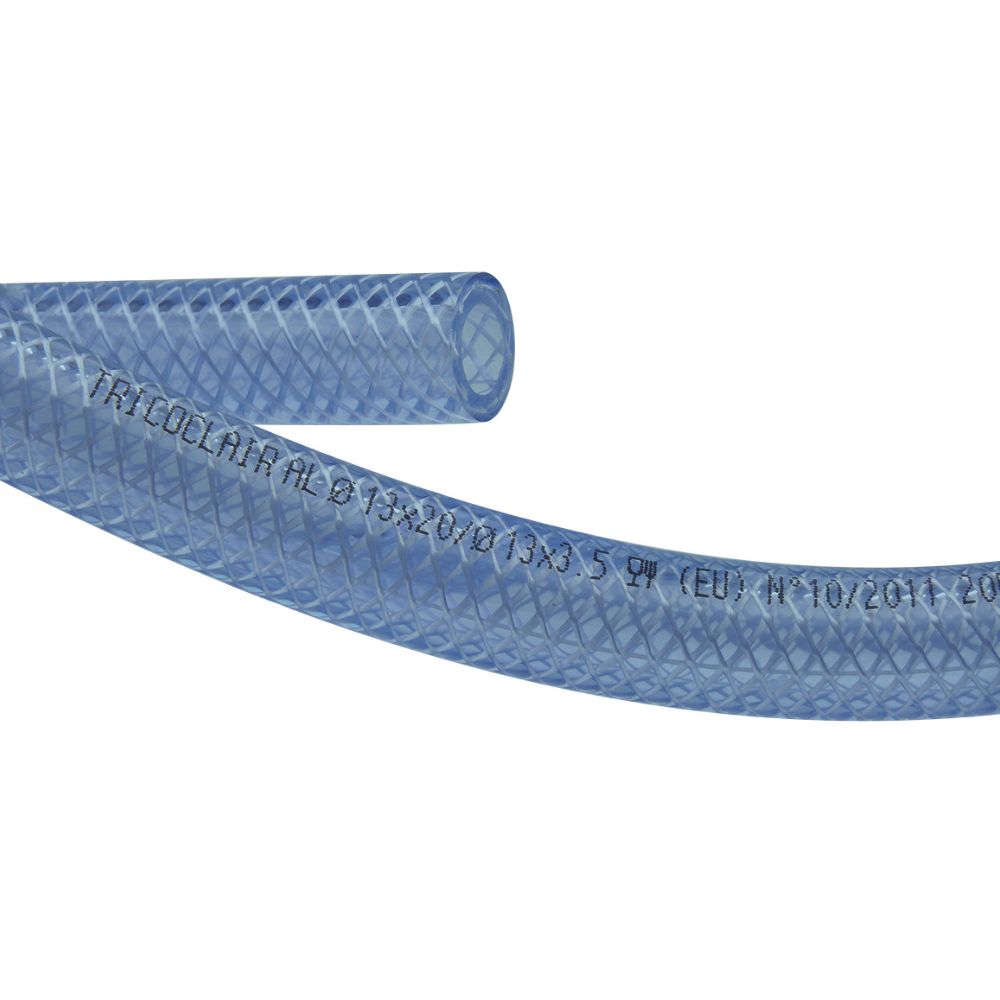

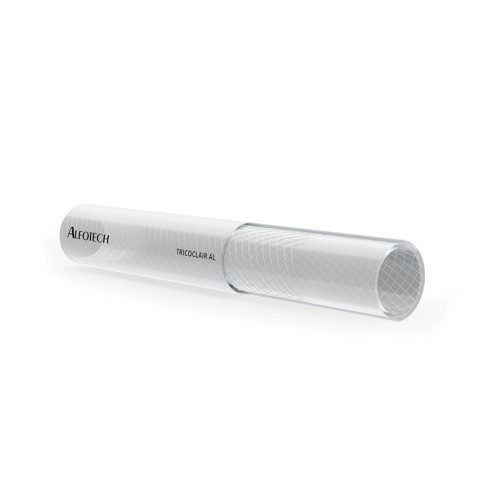

Tricoclair AL

Application:

The Tricoclair AL PVC hose is suitable for transporting liquid food. The hose can also be used for alcohol with an alcohol percentage up to 50% and a temperature of max. +40°C.

Construction:

The Tricoclair AL hose is made of 3 layers with embedded polyester reinforcement. The inner and outer layers are made of PVC. The hose is transparent.

  • Good handling properties
  • Excellent pressure strength
  • UV resistant

Technical specifications

Temperature:

The temperature ranges from -15°C to +60°C.

Pressure:

All pressures are stated at the temperature +20°C.

Standards:

The hose complies with EC 1935/2004 and 2023/2006/EC (GMP), EU Regulation 10/2011/EU, as well as simulator A, B, C, and D1. The manufacture is free of phthalates.

Safety factor:

Safety factor: ≥ 3 times working pressure.

Approvals

Product number Inner dia.
mm
Outer dia.
mm
Bending radius
mm
Working pressure
bar
Burst pressure
bar
Color Metres per
coil
Net weight
kg
Base unit
0406000060
6,0
12,0
18,0
22,0
66,0
Transparent
50,0
0,102
MTR
0406000070
7,0
13,0
23,0
21,0
63,0
Transparent
25,0
0,108
MTR
0406000080
8,0
14,0
27,0
20,0
60,0
Transparent
50,0
0,124
MTR
0406000100
10,0
16,0
37,0
20,0
60,0
Transparent
50,0
0,146
MTR
0406000130
12,0
19,0
45,0
20,0
60,0
Transparent
50,0
0,204
MTR
0406000160
15,0
23,0
60,0
20,0
60,0
Transparent
50,0
0,291
MTR
0406000200
19,0
27,0
79,0
20,0
60,0
Transparent
50,0
0,346
MTR
0406000250
25,0
34,0
110,0
16,0
48,0
Transparent
50,0
0,500
MTR
0406000320
32,0
42,0
160,0
12,0
36,0
Transparent
25,0
0,697
MTR
0406000380
38,0
48,0
210,0
12,0
36,0
Transparent
25,0
0,810
MTR
0406000510
50,0
64,0
300,0
9,0
28,0
Transparent
25,0
1,467
MTR
