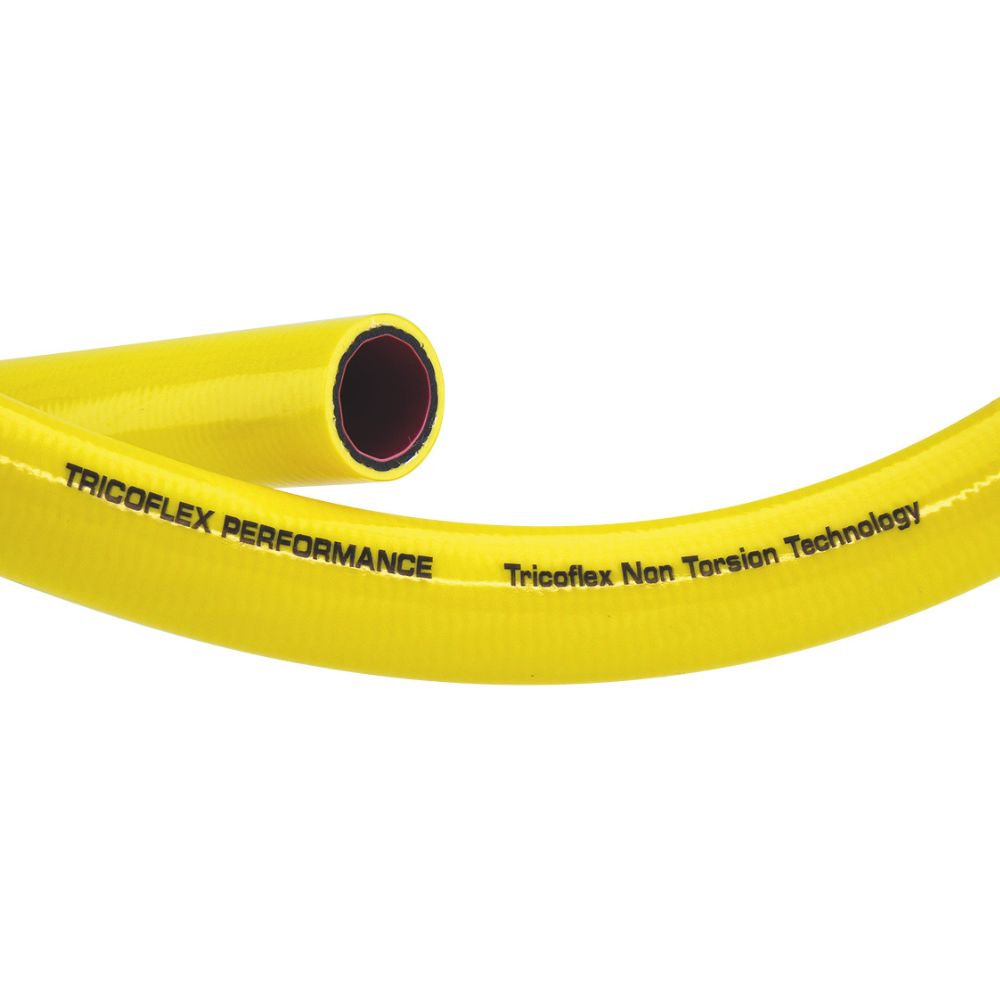

Tricoflex Performance

Application:

Tricoflex Performance is a water hose and is suitable for cleaning tasks.

Construction:

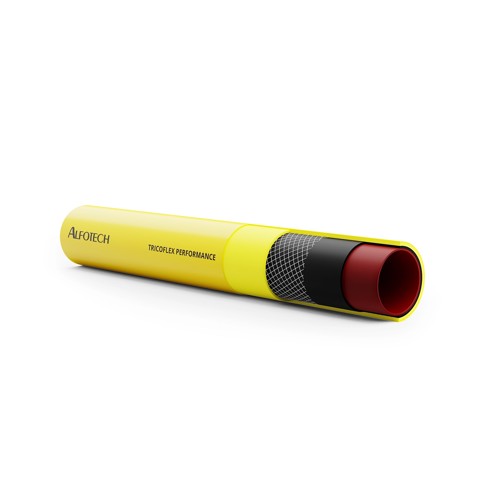

Tricoflex Performance is made in 5 layers. The hose combines high resistance and extraordinary flexibility thanks to a multilayer structure. The Tricoflex performance hose can withstand high pressure with minimal change, as well as frequent pressure pulses. The hose is yellow on the outside and red on the inside. The red inner wall is specially developed to improve the flow in the hose, which results in a longer service life.

  • Can withstand pressure with minimal change
  • Durable hose
  • UV and weather resistant

Technical specifications

Temperature:

The temperature ranges from -20°C to +60°C.

Pressure:

All pressures are stated at the temperature +20°C.

Standards:

The manufacture is free of phthalates.

Safety factor:

Safety factor: ≥ 2.5 times working pressure.

Approvals

Product number Inner dia.
mm
Outer dia.
mm
Bending radius
mm.
Working pressure
bar
Burst pressure
bar
Color Metres per
coil
Base unit
0402100130
12,5
18,2
55,0
15,0
38,0
Yellow
100
MTR
0402100200
19,0
25,8
80,0
12,0
30,0
Yellow
100
MTR
0402100250
25,0
32,4
100,0
8,0
20,0
Yellow
100
MTR
