FoodForce C

Teflon hose of corrugated PTFE with stainless steel braid

Application:

Universal hose suitable for transporting food and pharmaceutical products. Developed especially for transporting liquids, where great demands are made on temperature, pressure, or chemical influence.

Construction:

Inside consists of corrugated PTFE hose and on the outside, it is protected with stainless steel braid AISI 304 (also available with 316). The hose has good mechanical properties and is suitable for applications with high temperatures up to +260°C or down to -73°C without loss of mechanical properties. The hose has a high tensile strength and is non-toxic.

  • Good lubricity and anti-adhesive properties
  • Excellent chemical resistance
  • Good electrical discharge
  • Wear, UV, and weather resistant

Technical specifications

Temperature:

The temperature ranges from -73°C to +260°C.
The hose can be autoclaved.

Safety factor:

Safety factor: ≥ 3 times working pressure.

Pressure:

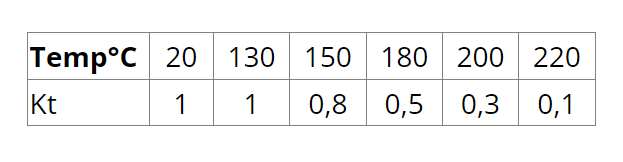

All pressures are stated at the temperature +20°C.

Standards:

FDA-approved (Title 21 CFR 177.2600), EC 1935/2004, USP CLASS VI, EU Regulation 10/2011/EU, ISO 9001:2015, ISO 14001:2015, and RoHs directive.

Approvals

Product number Inner dia.
mm
Outer dia.
mm
Bending radius
mm.
Working pressure
bar
Burst pressure
bar
Vacuum
bar
Metres per
coil
Net weight
kg.
Base unit
0429000060
6,3
11,5
18,0
172,0
517,0
0,90
25,0
0,137
MTR
0429000080
8,0
13,0
20,0
138,0
414,0
0,90
25,0
0,178
MTR
0429000100
10,0
15,5
20,0
138,0
414,0
0,90
25,0
0,222
MTR
0429000120
13,0
18,5
25,0
103,0
310,0
0,90
25,0
0,282
MTR
0429000160
16,0
22,5
50,0
83,0
248,0
0,90
25,0
0,346
MTR
0429000200
19,5
26,7
65,0
70,0
280,0
0,28
25,0
0,427
MTR
0429000250
25,5
33,7
90,0
50,0
200,0
0,28
25,0
0,55
MTR
0429000320
31,5
40,5
125,0
48,0
190,0
0,28
25,0
0,73
MTR
0429000380
38,0
48,3
145,0
43,0
172,0
0,30
25,0
0,880
MTR
0429000510
50,0
57,0
180,0
34,0
136,0
0,28
25,0
1,20
MTR
0429000640
63,5
89,0
230,0
16,0
80,0
0,90
25,0
1,196
MTR
0429000760
76,0
100,0
260,0
14,0
65,0
0,90
25,0
1,485
MTR
0429001020
101,6
125,5
260,0
10,0
40,0
0,89
20,0
4,05
MTR
