FoodForce S

Smooth Teflon hose with stainless steel braid

Application:

Universal hose suitable for transporting food and pharmaceutical products. Developed especially for transporting liquids, where great demands are made on temperature, pressure, or chemical influence.

Construction:

Extruded hose made of PTFE with stainless steel braid AISI 304 (also available with316). The hose has good mechanical properties and is suitable for applications with high temperatures up to +260°C or down -73°C without loss of mechanical properties. The hose has a high tensile strength, is non-toxic, and suitable for food.

  • Good lubricity and anti-adhesive properties
  • Excellent chemical resistance
  • Good electrical discharge
  • Wear, UV, and weather resistant

Technical specifications

Standards:

FDA-approved (Title 21 CFR 177.2600), EC 1935/2004, USP CLASS VI, EU Regulation 10/2011/EU, ISO 9001:2015, ISO 14001:2015, DVGW, and RoHs directive.

Safety factor:

Safety factor: ≥ 4 times working pressure.

Temperature:

The temperature ranges from -73°C to +260°C.
The hose can be sterilized.

Pressure:

All pressures are stated at the temperature +20°C.

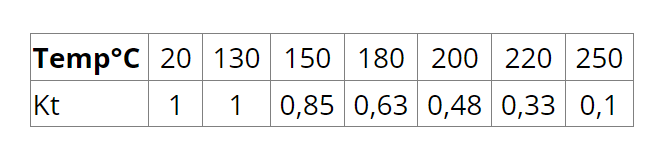

FoodForce S operates effectively within a temperature range that extends from -73°C to +260°C. This operating range is affected by the materials used for fittings. The WPD values vary with temperature changes, as described in the table below.

Example: If the working pressure is specified as 40 bar at +20°C, then the working pressure at +250°C will be 4 bar.

Temp°C 20 130 150 180 200 220 250
Kt 1 1 0,85 0,63 0,48 0,33 0,1





Approvals

Product number Inner dia.
mm
Outer dia.
mm
Bending radius
mm.
Working pressure
bar
Burst pressure
bar
Vacuum
bar
Metres per
coil
Net weight
kg.
Base unit
0429020032
3,2
5,9
40,0
275,0
1100,0
0,90
25,0
0,070
MTR
0429020050
5,0
7,4
45,0
225,0
900,0
0,90
25,0
0,083
MTR
0429020060
6,3
9,0
50,0
190,0
750,0
0,90
25,0
0,104
MTR
0429020080
8,0
10,8
55,0
160,0
640,0
0,90
25,0
0,141
MTR
0429020100
9,5
12,4
65,0
150,0
600,0
0,90
25,0
0,166
MTR
0429020130
12,7
15,7
90,0
125,0
500,0
0,90
25,0
0,244
MTR
0429020160
16,0
19,1
120,0
115,0
460,0
0,90
25,0
0,300
MTR
0429020200
19,0
22,2
140,0
90,0
360,0
0,90
25,0
0,367
MTR
0429020250
25,4
29,3
260,0
70,0
280,0
0,90
25,0
0,503
MTR
