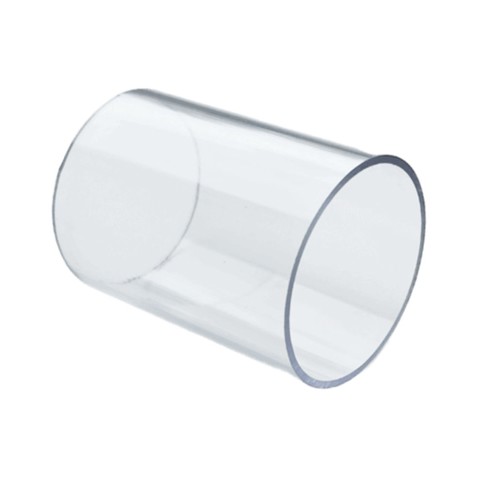

Glass, Borosilicate for In-Line sight glas

Application:

Glass cylinder for use with In-line sight glass.

Download productsheet

Technical specifications

Temperature:

Temperature up to +280°C.

Quality:

The glass is made of borosilicate glass.

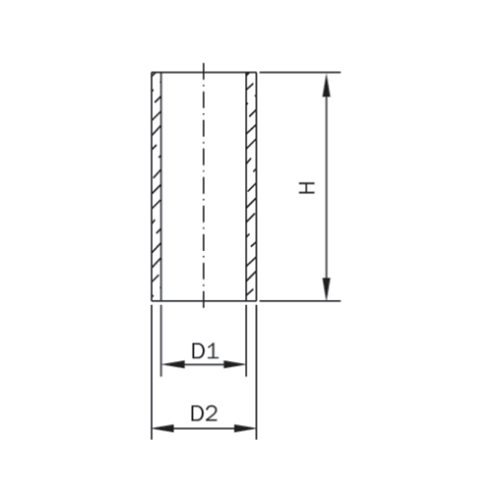

Product number	Nom. dim. - DN	Nominal dim. inch	Height H mm.	D1 dia. mm.	D2 dia. mm.	Working pressure bar	Net weight kg.	Base unit
0133140100	10		90,0	10,0	15,0	10,0	0,02	PCS
0133140150	15		60,0	17,0	22,0	10,0	0,02	PCS
0133140200	20		60,0	20,0	26,0	10,0	0,03	PCS
0133140250	25	1"	70,0	26,0	32,0	10,0	0,04	PCS
0133140320	32		70,0	34,0	40,0	10,0	0,06	PCS
0133140380	40	1½"	70,0	40,0	50,0	10,0	0,11	PCS
0133140510	50	2"	70,0	50,0	60,0	10,0	0,14	PCS
0133140640		2½"	85,0	60,0	70,0	10,0	0,18	PCS
0133140650	65		85,0	65,0	75,0	10,0	0,21	PCS
0133140760		3"	90,0	75,0	85,0	9,0	0,27	PCS
0133140800	80		85,0	80,0	90,0	8,0	0,30	PCS
0133141000	100	4"	115,0	100,0	110,0	7,0	0,43	PCS
