Sight glass with nut, DIN, Borosilicate, stainless AISI 316

Application:

Sight glass for food and pharmaceuticals.

Construction:

The glass is constructed of borosilicate glass, which provides excellent strength and stability.
Without safety grid.

Technical specifications

Temperature:

The temperature ranges up to +280°C.
A change in the temperature from +230°C to +20°C must take at least 1 minute.
The working pressure is 6 bar.

Quality:

Made of stainless steel AISI 316.

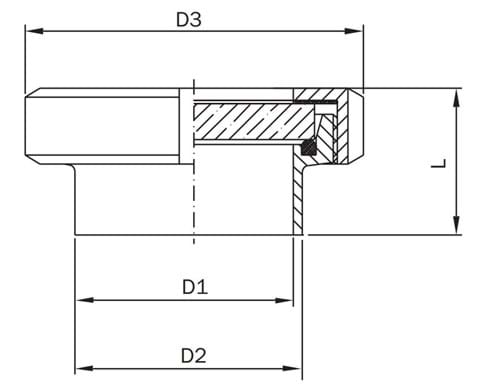

Product number Length L
mm.
D1 dia.
mm.
D2 dia.
mm.
D3 Dia.
mm
Net weight
kg.
Base unit Nominel dim. - DN
0135000040
41,0
38,0
41,0
78,0
0,48
PCS
40
0135000050
43,0
50,0
53,0
92,0
0,690
PCS
50
0135000065
48,0
66,0
70,0
112,0
2,14
PCS
65
0135000080
54
81,0
85,0
127,0
1,610
PCS
80
0135000100
64,0
100,0
104,0
148,0
2,270
PCS
100
0135000125
58,0
125,0
129,0
178,0
3,080
PCS
125
0135000150
60,0
150,0
154,0
210,0
5,28
PCS
150
