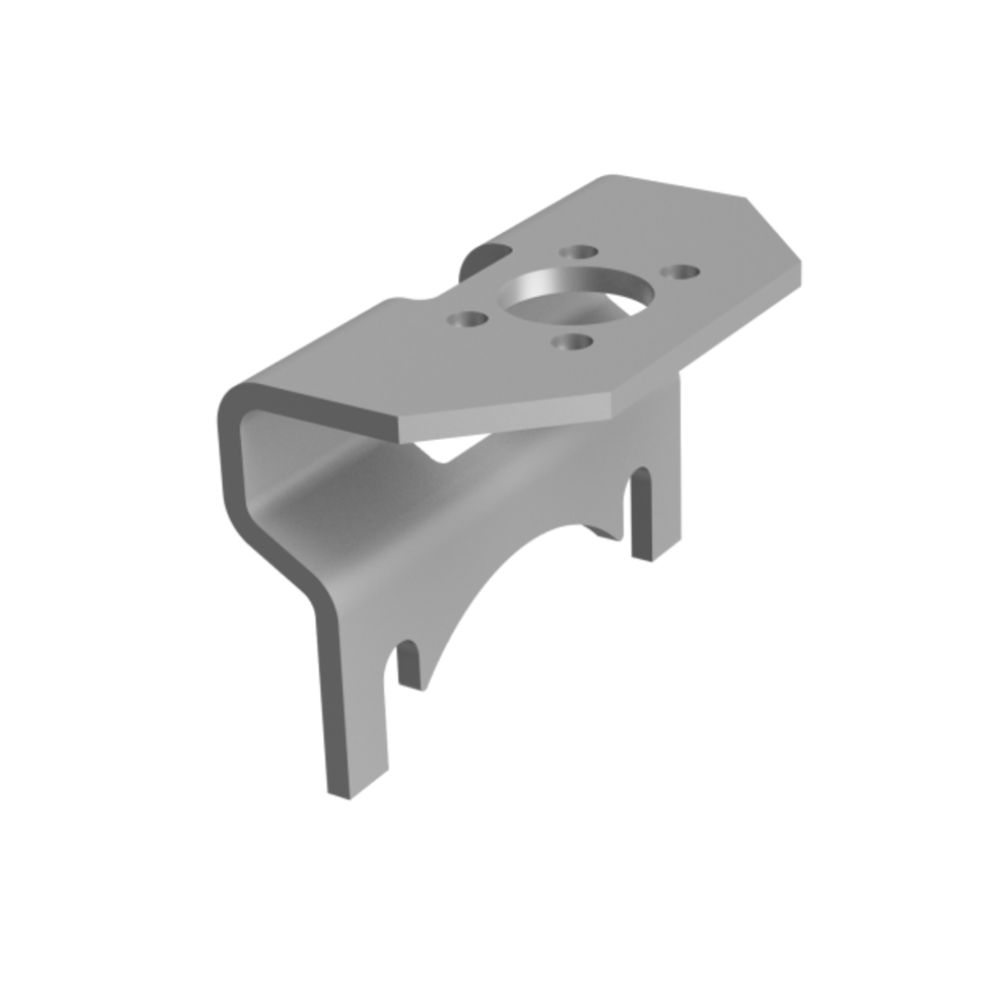

Retaining plate for AWH actuator

Application:

Retaining plate for the secure attachment of a pneumatic actuator to an AWH butterfly valve. Suitable for use in the food, dairy and pharmaceutical industries.

Construction:

Ensures a precise and stable connection between the valve body and the actuator.
Open construction providing easy access to the valve’s moving parts.
Optimised for easy installation and quick servicing of both the valve and the actuator.

Quality:

Made of AISI 304L stainless steel.

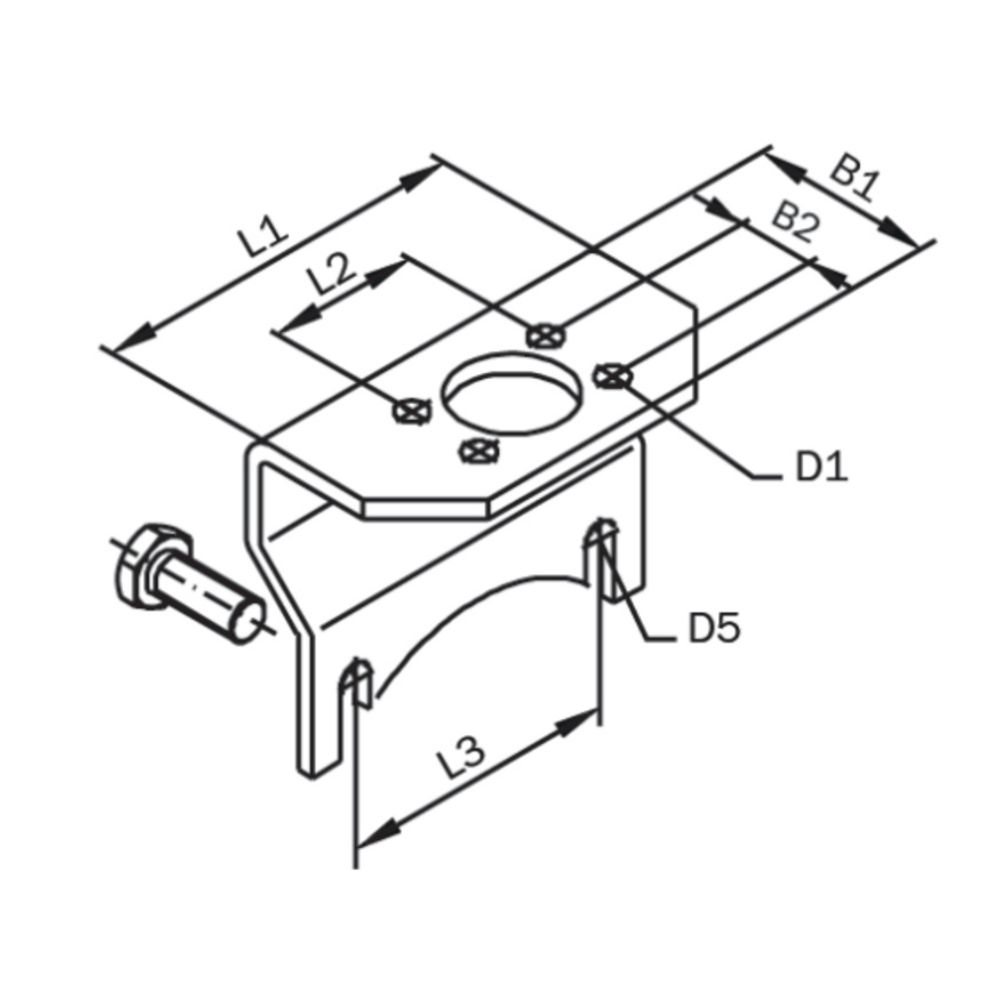

Item number	Nominal dim. inch	Nom. dim. - DN	D1 dia. mm.	Dia. mm. D5	Bredde mm. - B1	Bredde mm. - B2	Length L1 mm.	Længde L2 - mm.	Length L3 mm.	Material type	Net weight kg.	Base unit
0520505001	1"	DN25	6,0	9,0	52,0	17,5	78,0	30,3	51,6	AISI 304L	0,194	PCS
0520506001		DN32	6,0	9,0	52,0	17,5	82,0	30,3	55,1	AISI 304L	0,206	PCS
0520507001	1½"	DN40	6,0	9,0	52,0	17,5	86,0	30,3	58,3	AISI 304L	0,214	PCS
0520508001	2"	DN50	6,0	9,0	52,0	17,5	96,0	30,3	67,5	AISI 304L	0,244	PCS
0520509001	2½"	DN65	6,0	9,0	52,0	17,5	108,0	30,3	79,5	AISI 304L	0,270	PCS
0520510001	3"	DN80	6,0	9,0	59,0	17,5	118,0	30,3	90,2	AISI 304L	0,323	PCS
0520512001	4"	DN100	6,0	9,0	59,0	17,5	132,0	30,3	104,3	AISI 304L	0,376	PCS
0520513001		DN125	9,0	11,0	60,0	25,4	120,0	44,0	90,0	AISI 304L	0,500	PCS
0520515001		DN150-DN200	9,0	11,0	60,0	25,4	135,0	44,0	60,0	AISI 304L	0,400	PCS

Subject to incorrect product data, variations in images/videos, and price and exchange rate changes.
