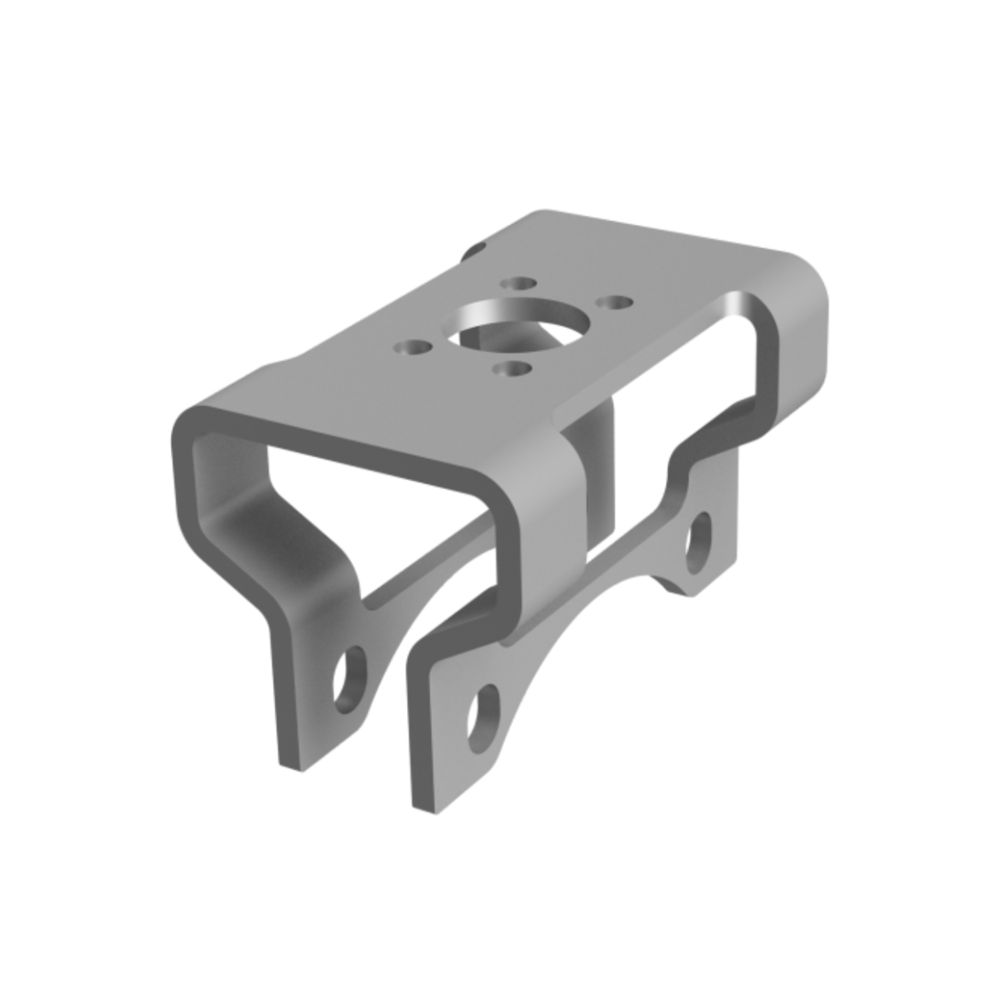

Retaining plate for AWH actuator, reinforced

Application:

Reinforced retaining plate for the secure attachment of pneumatic actuators to larger or heavily loaded AWH butterfly valves. Suitable for use in the food, dairy and pharmaceutical industries.

Construction:

  • Reinforced design ensuring an even more precise and stable connection between the valve body and the actuator under higher loads.
  • Open construction providing easy access to the valve’s moving parts.
  • Optimised for easy installation and quick servicing of both the valve and the actuator.
  • Designed to handle high torque from larger actuators.

Quality:

Made of AISI 304 stainless steel.

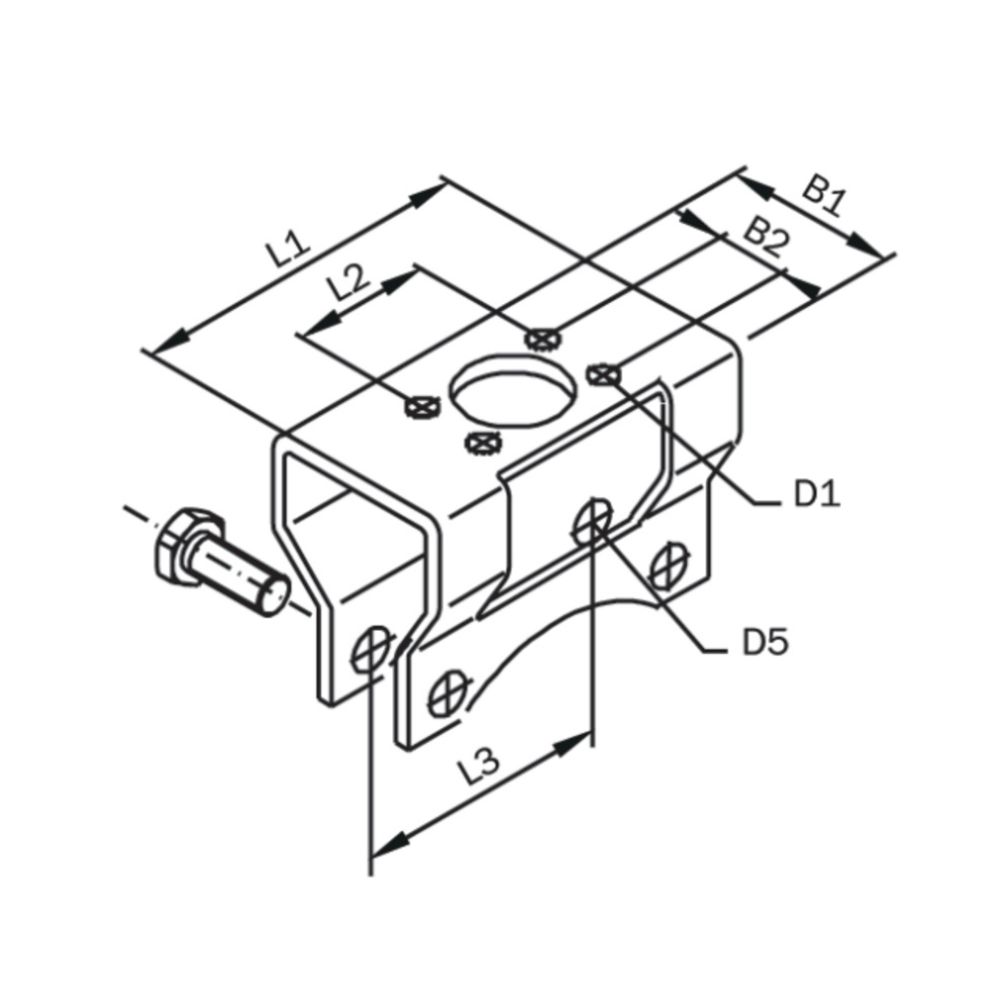

Item number Nom. dim. - DN Nominal dim.
inch 		D1 dia.
mm. 		Dia. mm.
D5 		Bredde mm. - B1 Bredde mm. - B2 Længde L2 - mm. Length L3
mm. 		Length L1
mm. 		Material type Net weight
kg. 		Base unit Quantity
0520525001 DN25 1" 6,0 9,0 60,0 17,6 30,3 51,5 79,5 AISI 304 0,30 PCS
0520526001 DN32 6,0 9,0 52,0 17,5 30,3 55,1 82,0 AISI 304L 0,211 PCS
0520527001 DN40 1½" 6,0 9,0 52,0 17,5 30,3 58,3 86,0 AISI 304L 0,233 PCS
0520528001 DN50 2" 6,0 9,0 52,0 17,5 30,3 67,5 96,0 AISI 304L 0,25 PCS
0520529001 DN65 2½" 6,0 9,0 52,0 17,5 30,3 79,5 108,0 AISI 304L 0,286 PCS
0520530001 DN80 3" 6,0 9,0 59,0 17,5 30,3 90,2 118,0 AISI 304L 0,335 PCS
0520532001 DN100 4" 6,0 9,0 59,0 17,5 30,3 104,3 132,0 AISI 304L 0,380 PCS
0520533001 DN125 9,0 11,0 60,0 25,4 44,0 90,0 120,0 AISI 304L 0,342 PCS
0520535001 DN150-DN200 9,0 11,0 60,0 25,4 44,0 105,0 135,0 AISI 304L 0,408 PCS
Subject to incorrect product data, variations in images/videos, and price and exchange rate changes.
