Push-in Swivel, male elbow BSPP & metric, stainless

Push-in Swivel, male elbow

Application:

Push-in angle with swivel and BSPP thread suitable for compressed air hoses in connection with pneumatically controlled components within food, chemical and pharmaceutical industries.

Construction:

Designed to achieve a high level of sanitation and a long service life.

Quality:

All parts are made of acid-proof stainless steel AISI 316.
Viton rubber gasket.

Temperature:

The temperature ranges from -20°C to +150°C.
Maximum working pressure of 20 bar at +20°C.

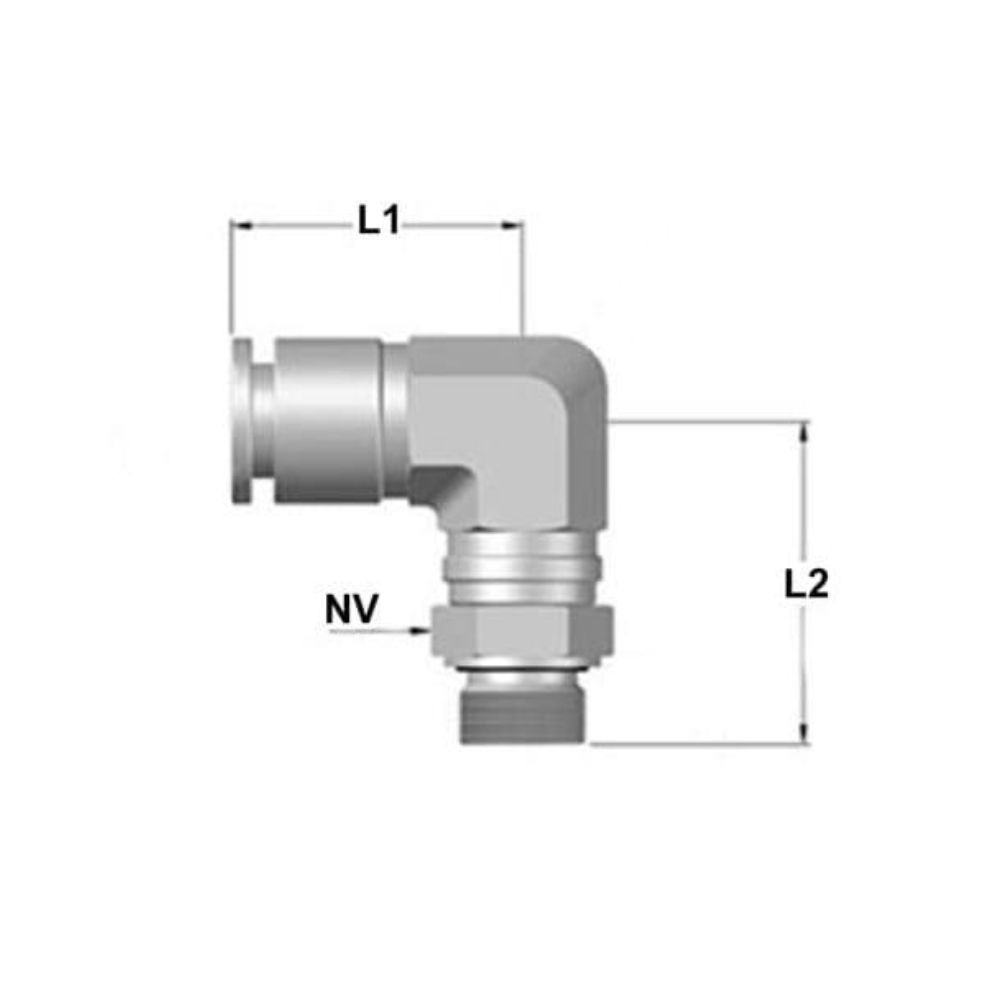

Item number	Nominal dim. mm.	Connection RG	Installation dim. L1 mm.	Installation dim. L2 mm	Key width NV mm.	Net weight kg.	Base unit
0278040400	4,0	M5	17,1	26,5	11,0	0,027	PCS
0278040401	4,0	1/8"	17,1	26,9	11,0	0,031	PCS
0278040402	4,0	1/4"	17,1	28,9	11,0	0,041	PCS
0278040501	5,0	1/8"	20,6	26,9	11,0	0,031	PCS
0278040502	5,0	1/4"	20,6	28,9	11,0	0,041	PCS
0278040600	6,0	M5	20,6	25,8	13,0	0,027	PCS
0278040601	6,0	1/8"	20,6	27,8	13,0	0,035	PCS
0278040602	6,0	1/4"	20,6	30,0	13,0	0,045	PCS
0278040801	8,0	1/8"	21,4	29,8	14,0	0,045	PCS
0278040802	8,0	1/4"	21,4	32,0	14,0	0,053	PCS
0278040803	8,0	3/8"	21,4	32,0	14,0	0,063	PCS
0278041002	10,0	1/4"	24,6	33,1	17,0	0,075	PCS
0278041003	10,0	3/8"	24,6	33,1	17,0	0,080	PCS
0278041202	12,0	1/4"	25,6	35,3	21,0	0,103	PCS
0278041203	12,0	3/8"	25,6	35,8	21,0	0,103	PCS
0278041204	12,0	1/2"	25,6	38,8	21,0	0,132	PCS
0278041404	14,0	1/2"	27,5	40,8	22,0	0,162	PCS

Item number

Nominal dim.
mm.

Connection
RG

Installation dim. L1
mm.

Installation dim. L2
mm

Key width NV
mm.

Net weight
kg.

Base unit

Quantity

0278040400

4,0

17,1

26,5

11,0

0,027

PCS

0278040401

4,0

1/8"

17,1

26,9

11,0

0,031

PCS

0278040402

4,0

1/4"

17,1

28,9

11,0

0,041

PCS

0278040501

5,0

1/8"

20,6

26,9

11,0

0,031

PCS

0278040502

5,0

1/4"

20,6

28,9

11,0

0,041

PCS

0278040600

6,0

20,6

25,8

13,0

0,027

PCS

0278040601

6,0

1/8"

20,6

27,8

13,0

0,035

PCS

0278040602

6,0

1/4"

20,6

30,0

13,0

0,045

PCS

0278040801

8,0

1/8"

21,4

29,8

14,0

0,045

PCS

0278040802

8,0

1/4"

21,4

32,0

14,0

0,053

PCS

0278040803

8,0

3/8"

21,4

32,0

14,0

0,063

PCS

0278041002

10,0

1/4"

24,6

33,1

17,0

0,075

PCS

0278041003

10,0

3/8"

24,6

33,1

17,0

0,080

PCS

0278041202

12,0

1/4"

25,6

35,3

21,0

0,103

PCS

0278041203

12,0

3/8"

25,6

35,8

21,0

0,103

PCS

0278041204

12,0

1/2"

25,6

38,8

21,0

0,132

PCS

0278041404

14,0

1/2"

27,5

40,8

22,0

0,162

PCS
