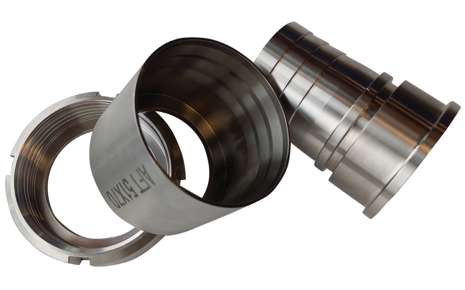

InterLock system for maximum operational reliability
InterLock system for maximum operational reliability

Other customers also saw

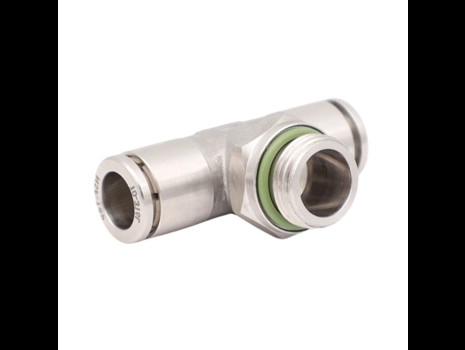

Push-in tee, swivel
Push-in tee, swivel

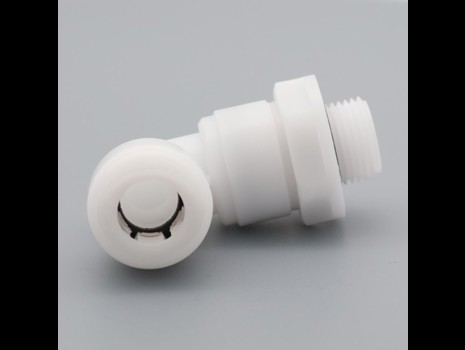

Push-in male swivel elbow, BSPP
Push-in male swivel elbow, BSPP
Push-on male connector, BSPT
Push-on male connector, BSPT

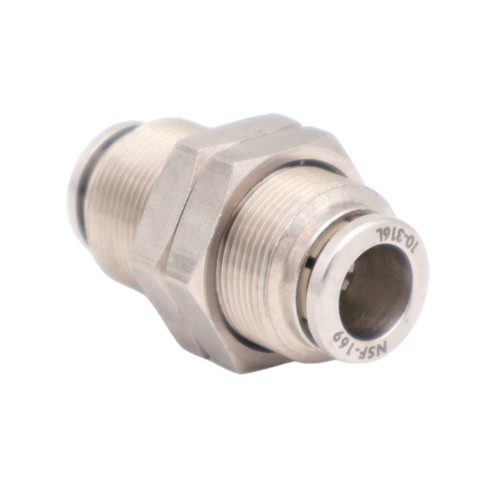

Push-in bulkhead connector

Application:

Push-in bulkhead for leading through compressed air hoses in connection with pneumatically controlled components within food, chemical, and pharmaceutical industries.

Construction:

Designed to achieve a high level of sanitation and a long service life.

Quality:

All parts are made of stainless steel. Body in AISI 316, lock claw in AISI 303. Gasket is made of Viton rubber.

Temperature:

The temperature ranges from -20°C to +150°C.
Maximum working pressure of 20 bar at +20°C.

Item number Nominal dim.
mm.		 Installation dim. L1
mm.		 Installation dim. L2
mm		 Key width NV
mm.		 Net weight
kg.		 Base unit Quantity
0278090400 4,0 33,0 18,8 14,0 0,024 PCS
0278090600 6,0 35,0 19,3 19,0 0,038 PCS
0278090800 8,0 36,0 20,3 21,0 0,045 PCS
0278091000 10,0 42,0 24,8 22,0 0,064 PCS
0278091200 12,0 46,4 25,2 27,0 0,100 PCS
Subject to incorrect product data, variations in images/videos, and price and exchange rate changes.
