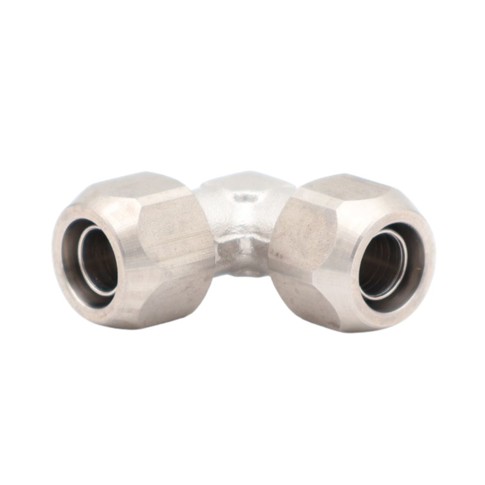

Push-on Union elbow connector

Application:

Push-on angle, union suitable for air, water, and food.

Construction:

Designed to achieve a high level of sanitation and a long service life.

Quality:

Made of stainless steel AISI 316.

Temperature:

The temperature ranges from -40°C to +140°C.
Maximum working pressure of 25 bar at +20°C.

Download data sheet

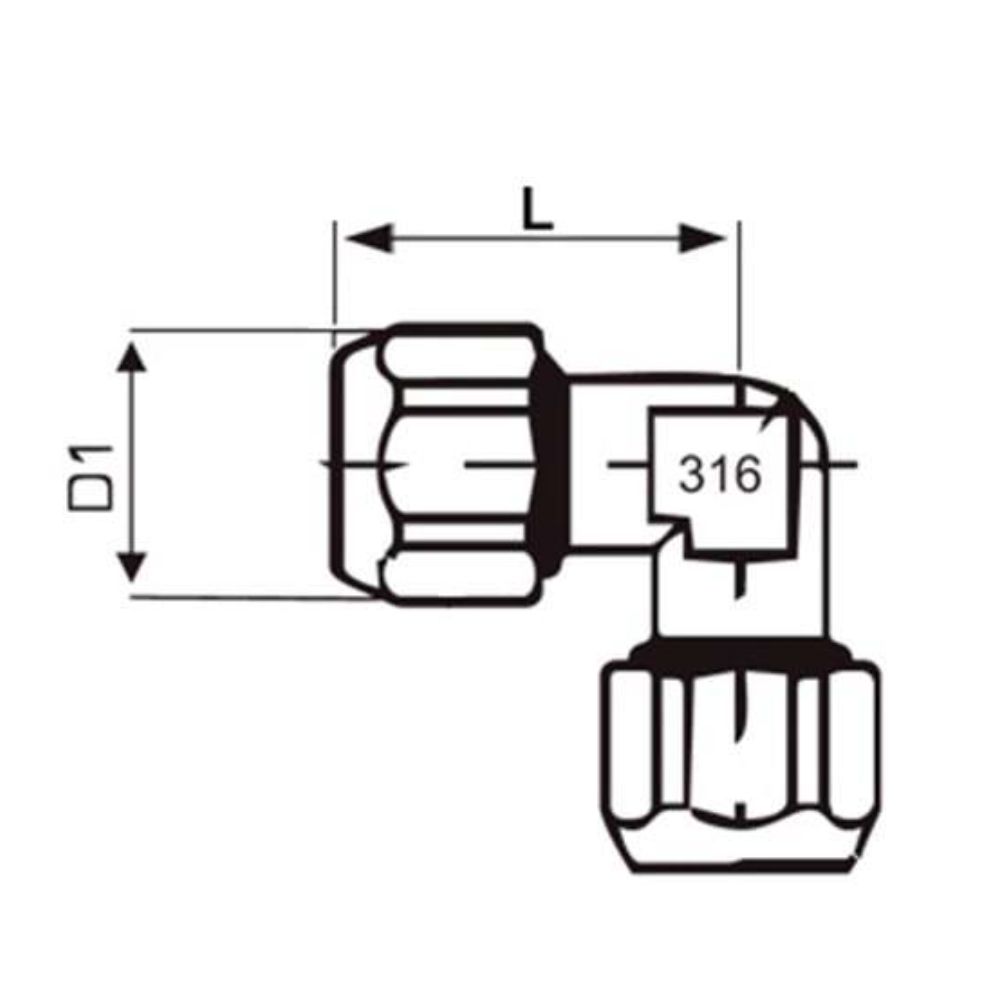

Item number	Nominal dim. mm.	D1 dia. mm.	Installation dim. L mm.	Net weight kg.	Base unit
0278320600	6,0	13,0	22,5	0,029	PCS
0278320800	8,0	13,5	22,5	0,029	PCS
0278321000	10,0	15,5	25,0	0,070	PCS
0278321200	12,0	21,0	29,0	0,040	PCS
