Push-on union tee connector

Application:

Push-on T-piece, union suitable for air, water, and food.

Construction:

Designed to achieve a high level of sanitation and a long service life.

Quality:

Made of stainless steel AISI 316.

Temperature:

The temperature ranges from -40°C to +140°C.
Maximum working pressure of 25 bar at +20°C.

Download data sheet

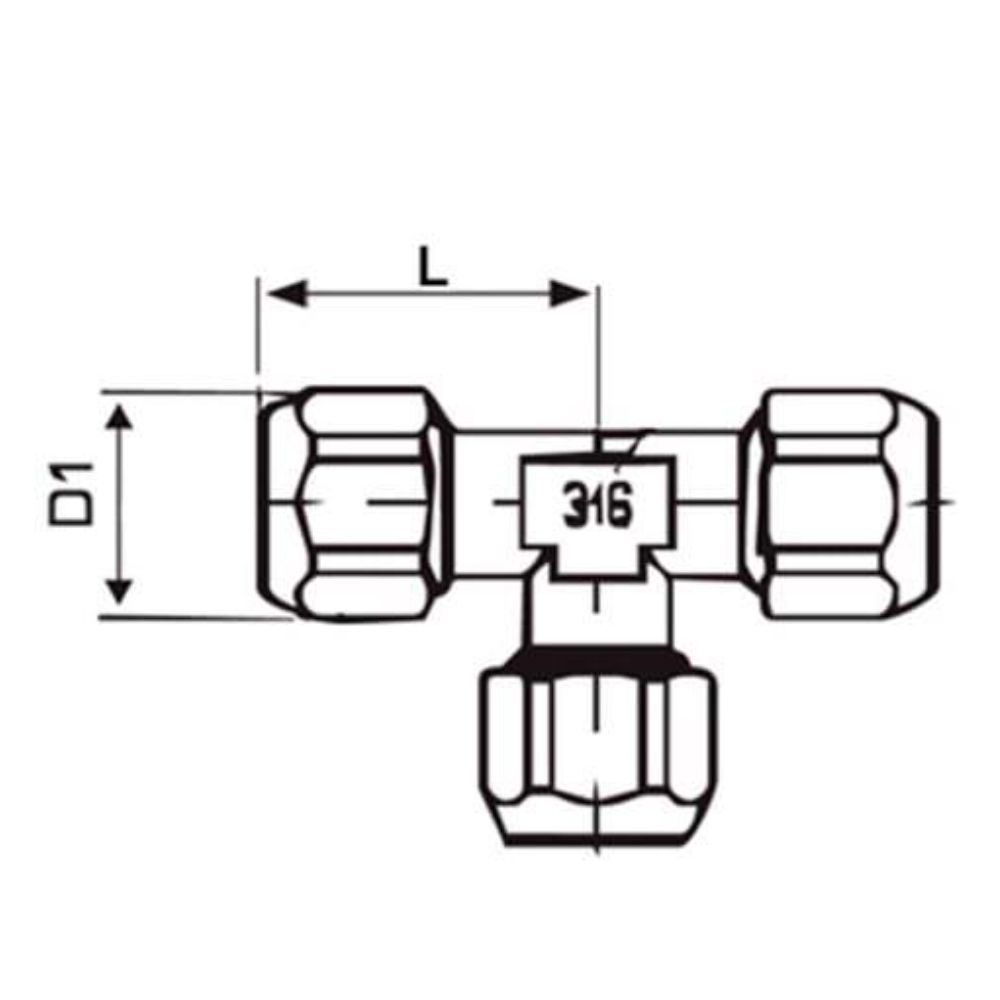

Item number Nominal dim.
mm.
D1 dia.
mm.
Installation dim. L
mm.
Net weight
kg.
Quantity
0278330600 6,0 13,0 22,5 0,037
0278330800 8,0 15,6 22,5 0,039
0278331000 10,0 18,5 25,0 0,061
0278331200 12,0 21,0 29,0 0,115
Subject to incorrect product data, variations in images/videos, and price and exchange rate changes.
