Cartridge seal LSC40-F

Application:

Single cartridge to seal and prevent liquid or gas leaks.

Please note that the product can be delivered in more dimensions and materials than those listed. Please contact us for more information.

Construction:

  • Multispring
  • Balanced
  • With 4 mounting holes
  • Not dependent on the direction of rotation
  • With flushing connections for flushing, cleaning and cooling between the seal's contact faces
Download data sheet

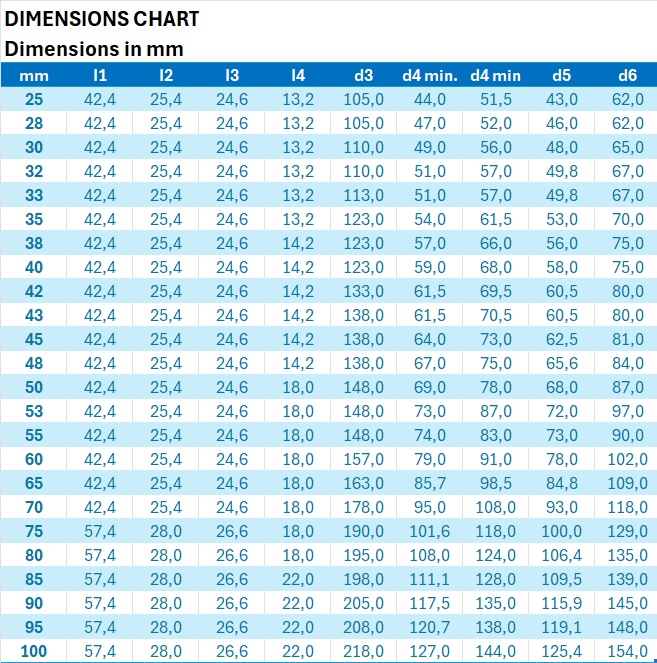

Technical specifications

Quality:

  • AISI 316 stainless steel flange
  • Bushing in Hastelloy

Operating limits:

d1 = diameter, p = pressure, v = velocity, t = temperature

  • d1 = 25 ÷ 100 mm
  • p = 25 kg/cm2
  • v = 16 m/s
  • t = -15 ÷ +200°C

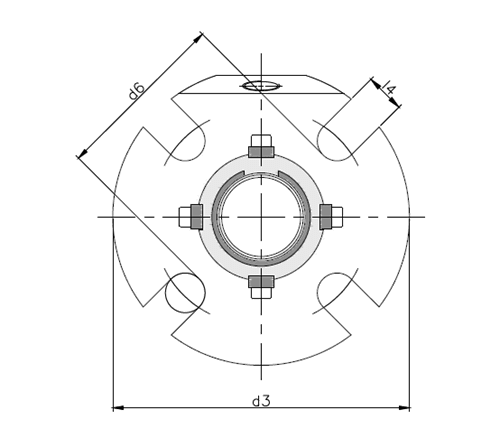

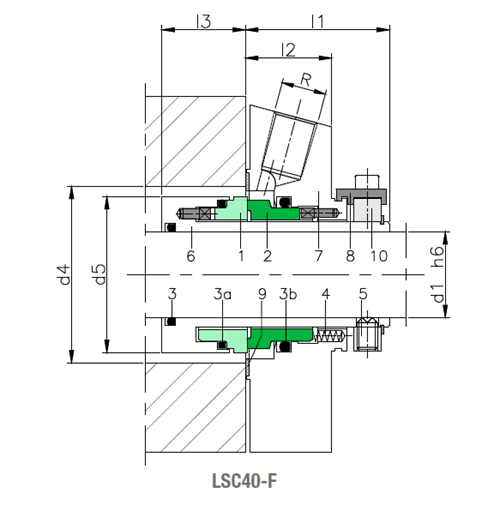

Components:

  1. Rotating contact surface
  2. Stationary contact surface
  3. O-rings
  4. Springs
  5. Set screws
  6. Sleeve
  7. Flange
  8. Setting clips
  9. Flat gasket
  10. Drive ring
Product number Length L1
mm. 		Length L3
mm. 		Radius
inch 		Shaft dia.
mm 		Dia. mm.
D3 		Dia. mm.
D4 		Dia. mm.
D5 		Dia. mm.
D6 		Bolt parts
dia. mm. LK 		Stationary part
material 		Rotating part
material 		Elastomer
type 		Base unit
03454010305V
42,4
24,6
1/4" NPT
30,0
110,0
49,0 - 56,0
48,0
65,0
13,2
Sic
Kul
Viton
PCS
03454010307V
42,4
24,6
1/4" NPT
30,0
110
49,0 - 56,0
48,0
65,0
13,2
Sic
Sic
Viton
PCS
03454010605V
42,4
24,6
3/8" NPT
60,0
157,0
79,0 - 91,0
78,0
102,0
18,0
Sic
Kul
Viton
PCS
03454010607V
42,4
24,6
3/8" NTP
60,0
157,0
79,0 - 91,0
78,0
102,0
18,0
Sic
Sic
Viton
PCS
03454010705V
42,4
24,6
3/8" NPT
70,0
178,0
95,0 - 108,0
93,0
118,0
18,0
Sic
Kul
Viton
PCS
03454010707V
42,4
24,6
3/8" NPT
70,0
178,0
95,0 - 108,0
93,0
118,0
18,0
Sic
Sic
Viton
PCS
